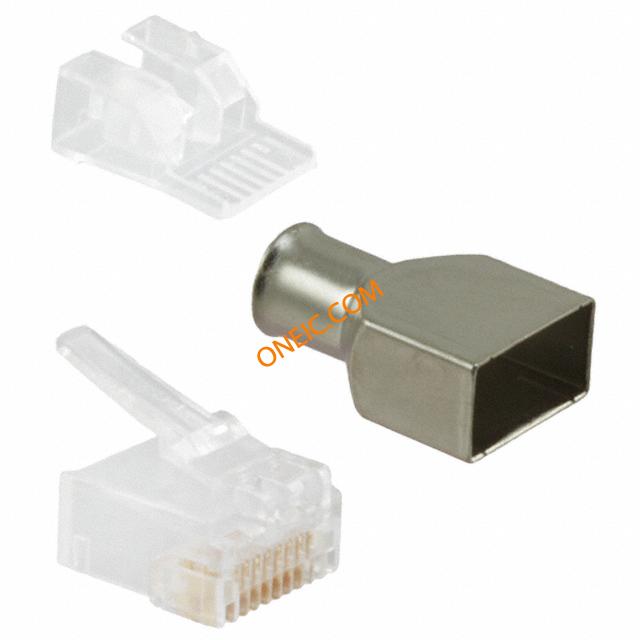

5-1375202-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Telephone/Telecom PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 6 Ethernet & Telecom Connectors KIT 8P MOD PLUG CAT6 STRANDED Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Cat6 modular plug,8/8, shielded,stranded Modular Connectors / Ethernet Connectors KIT 8P MOD PLUG CAT6 STRANDED Conn Telephone/Telecom PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 6 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, ModularPlug,8Position,StrandedWire,CAT6,Shielded;kit |
| 分类 |
商业参数
| 产品 | Telecom & Ethernet Connectors | 产品类别 | Ethernet & Telecom Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 连接器类型 - 电压输入 | Cat6 | ||
机械参数
| 颜色 | Translucent - Clear | 深度 | 17.15 mm |
| 高度 | 7.29 mm | 包装方式 | Bulk |
| 屏蔽 | Shielded | 电缆类型 | Round Cable, Stranded Wires |
| 导线线规 | 24-26 AWG | 端接方式 | Crimp |
| 外壳颜色 | Clear | 安装类型 | Cable Mount |
| 连接器类型 | Modular Plug | 接触镀层 | Gold |
| 安装样式 | Cable | 屏蔽材料 | Brass |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 总长度 | 11.68 mm | 主要材料 | Modular |
| 触点数 | 8 | 接触镀层厚度 | 50µin (1.27µm) |
| 每排/每行位置数 | 8P | ||
产品信息
| 类型 | Telephone/Telecom | 等级 | Cat6 |
| 连接器性别 | PL | 系列 | AMP |
| 产品特性 | Molded Boot | 主要用途 | Molded Boot |
| 类别编号 | Cat 6 | 端口数 | 1 Port |
| 射频系列/标准 | 1375202 | 性能类别 | Cat 6 |
| 加载位置数 | 8 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat6 | ||
