点击放大查看

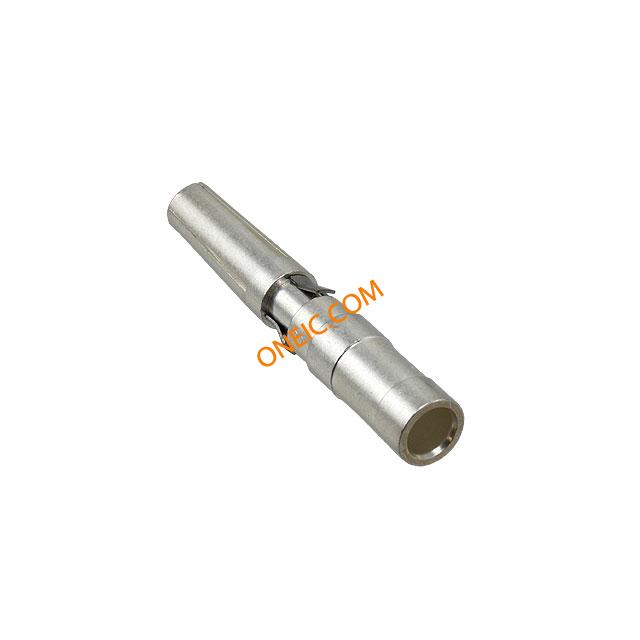

5-1105301-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories HVT-C-BU.AG.4,0 QMM Heavy Duty Power Connectors HVT-C-Bu.Ag.4 0 qmm Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:HVT SeriesContactContact Type = SocketFemaleWire Range = 4.00² [11.5-11] mm [AWG]Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接触电阻 | 3 | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 11-11.5 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector Rectangular |
| 接触镀层 | Silver | 触头材料 | Brass |
| 包装数量 | Loose Piece | 端接样式 | Crimp |
| 导线剥线长度 | 8.00 [0.315] | 接触件端接 | Crimp |
| 线规或范围 - mm² | 4.00² [11.5-11] | ||
产品信息
| 备注 | Use with HTS Series HVT inserts | 类型 | Machined |
| 连接器性别 | SKT | 系列 | HVT |
| 产品子类型 | Contact | ||
