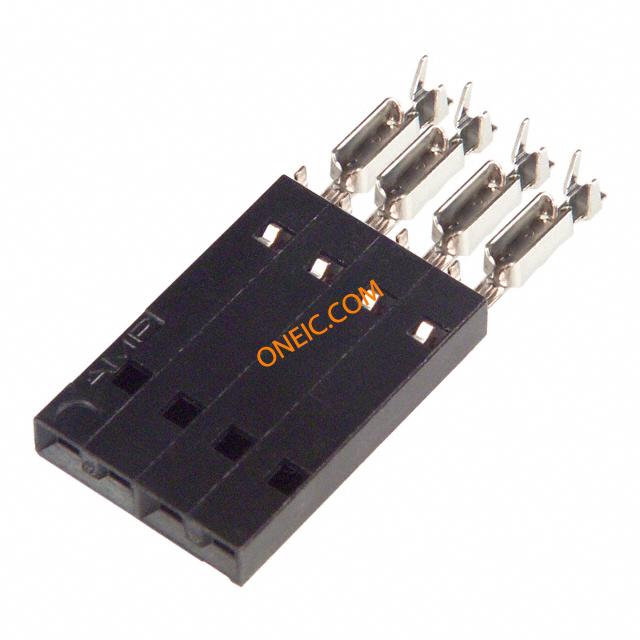

5-103975-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 4POS .100 15AU Headers & Wire Housings 5X4 RCPT SR PLAIN .100CL 5-103975-3 Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X4 MTE RCPT SR PLAIN .100CL
分类	连接器解决方案板对板连接器板对板连接器

商业参数

商标名	AMPMODU	其他名称	A34951
产品类别	Headers & Wire Housings	标准包装数量	1,155
工厂包装数量	55

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3 A
保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	2.49 mm [ .098 in ]	长度	50.55 mm [ 1.99 in ]
包装方式	Tube	导线类型	Ribbon Cable
壳体颜色	黑色	导线线规	22-26 AWG
排间距	2.54 mm	端接方式	IDT
触头类型	Female Socket	第二连接器	Without
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Wire
排数	1	插入件材料	磷青铜
操作力	Standard	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	包装数量	55
面板安装类型	不带	电缆端接方式	IDC
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	4	绝缘直径	1.37 mm [ .054 in ]
位数	4	兼容外壳尺寸（如TM-700等）	与接头配合
安装孔直径	不带	典型触点布局	同轴
接触镀层厚度	15µin (0.38µm)	静电放电屏蔽	带有

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	系列	AMPMODU MTE
产品特性	Closed End	产品子类型	Headers

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

5-103975-3?RQPN=5-103975-3

相关型号

103361-2

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 4POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA SINGLE 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Headerhoriz4way2.54mmAmpModu 04 MODII HDR SRRA SHRD .100CL

¥7.0387

详情

102523-1

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings SHROUDED RA SINGLE 4 with standoffs .100 inch AMPMODU Headers CONN HEADER RTANG 4POS PCB TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRRA SHRD .100CL

¥7.1280

详情

103080-2

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 4POS PCB TIN Headers & Wire Housings SHROUDED VERT SNGL 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST SHRD .100CL

¥3.7440

详情

104345-2

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 4POS VERT 15AU Headers & Wire Housings 04 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST B/A W/HD

¥1.2960

详情

102202-1

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 4POS 15AU Headers & Wire Housings SHROUDED VERT SNGL 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUSRHDRSHRD,04MODIIHDRSRSTSHRD.100CL 04 MODII HDR SRST SHRD .100CL

¥5.0400

详情

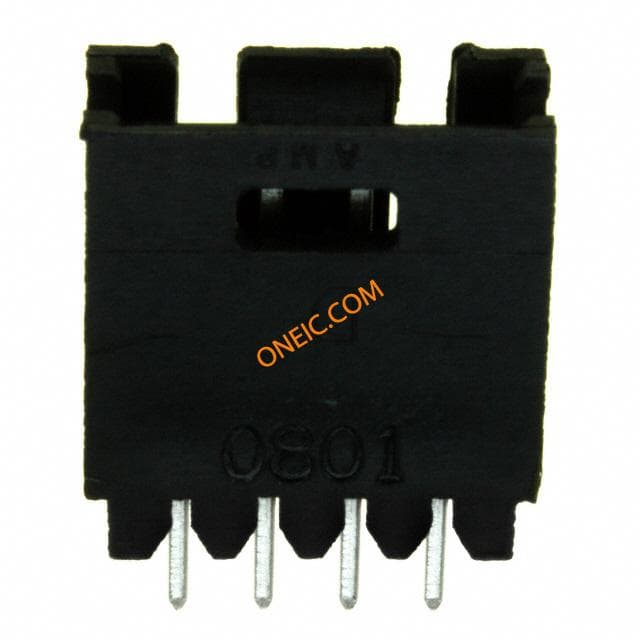

5-103080-2

te connectivity / amp

¥5.0328

详情

104349-2

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS R/A TIN Headers & Wire Housings 04 MODII HDR SRRA B/A W/HLDWN .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Standard4 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRRA B/A W/HLDWN

¥2.0160

详情

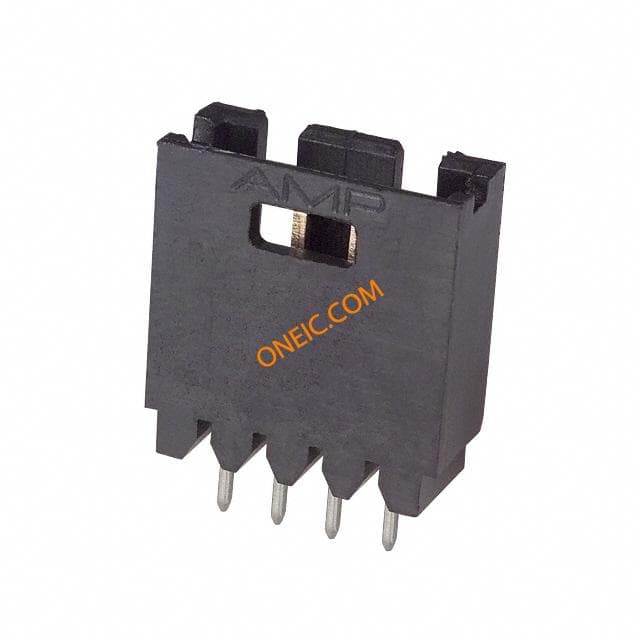

5-103414-2

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 4POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT SNGL 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 1ROW, 4WAY Header;Shrouded;Vertical;CopperAlloy;Thermoplastic;4;0.1in.;Gold(30) TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MODII HDR SRST SHRD LF

¥5.2416

详情

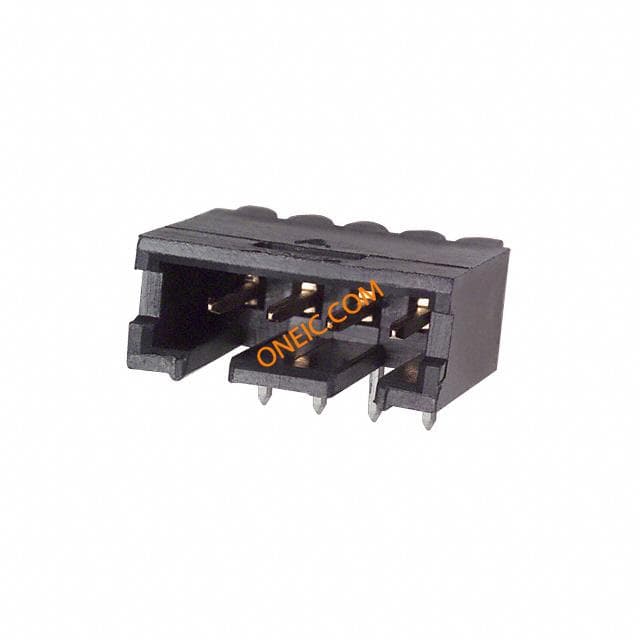

5-102203-1

te connectivity / amp

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 4POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HDR 1X04P R/A T/H Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, AMPModuIIShroudedHdr,plug,r/a,SR,4w TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 04 MODII HDR SRRA SHRD LF

¥6.6240

详情

104346-2

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS VERT TIN Headers & Wire Housings 04 MODII HDR SRST B/A W/HD 04 MODII HDR SRST B/A W/HD 04 MODII HDR SRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥0.9130
