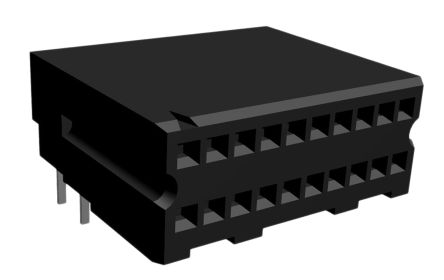

5-103911-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Socket Strip RCP 20 POS 1.27mm Solder RA Thru-Hole Tube CONN RECEPT .050 20POS R/A T/H Board to Board & Mezzanine Connectors 20 SYSTEM 50 RCPT ASSY DRRA Conn Socket Strip RCP 20 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 20Number of Rows = DualRight Angle Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2行 20路 直角 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 20 SYSTEM 50 RCPT ASSY DRRA |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 V | 输入电阻 | 5000 |
| 额定交流电压 | 30 | 最大额定电流 | 1A |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 11.55 mm |
| 间距 | 1.27 mm | 高度 | 5.51 mm |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 方向 | 直角 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 致动器类型 | 不带 |
| 外壳颜色 | Black | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 13.81 mm |
| 安装特性 | 压具柱体 | 包装数量 | 38 |
| 面板安装类型 | 通孔 | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 板面高度 | 0.217" (5.50mm) |
| 触点数 | 20 | 位数 | 20 |
| 衬套/护套类型 | 不带 | 兼容外壳尺寸（如TM-700等） | 插头组件 |
| 触头长度-柱 | 2.54 mm [ .1 in ] | 端子柱长度 | 2.54 mm [ .1 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | 注释 1：20 针到 100 针母端的压具柱体位于所示位置。, 注释 2：10 针、60 针、80 针和 100 针母端的压具柱体位于所示位置。 | 类型 | Socket Strip |
| 连接器性别 | RCP | 系列 | AMPMODU SYSTEM 50 |
| 产品特性 | Board Guide | 产品子类型 | Receptacles |
| 装配配置 | 板支座 | 加载位置数 | All |
环境参数
| 工作温度 | -65C to 105C | ||
