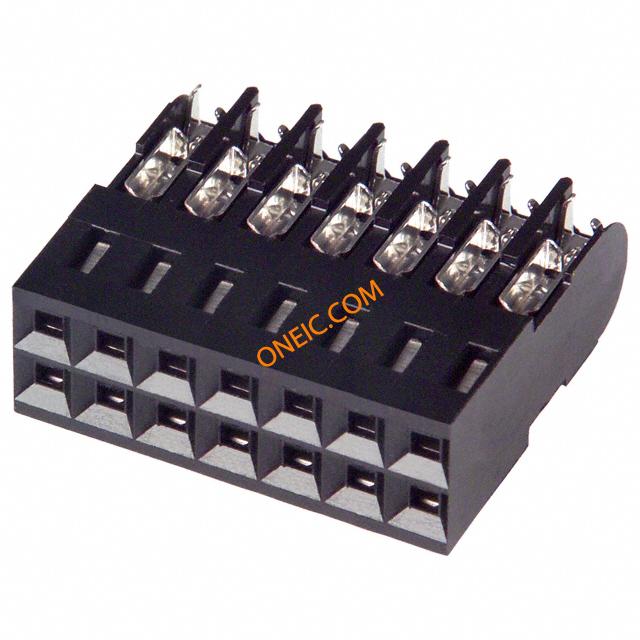

5-102393-5

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 14POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 14P 30-26 Conn IDC Connector RCP 14 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 AMPMODU MT ASSY DR.100CL SN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Trays	工厂包装数量	170

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

输入电阻	5000	连接器阻抗	刺破式压接 (IDC)
最大额定电流	3 A	保护额定电压（VPR）	600 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.96 mm [ .24 in ]	长度	17.78 mm [ .7 in ]
包装方式	Tray	导线类型	Discrete or Ribbon Cable
壳体颜色	黑色	导线线规	26-30 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	第二连接器	Without
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Wire
排数	2	插入件材料	磷青铜
操作力	Standard	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	包装数量	170
电缆端接方式	IDC	连接器 - 电缆	Yes
端接样式	IDC	第一触头极性	Socket (Female)
触点数	14	绝缘直径	1.27 mm
位数	14	安装孔直径	不带
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	AMPMODU MT	产品特性	Closed End
产品子类型	Receptacles / Sockets - Housings

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

5-102393-5?RQPN=5-102393-5
