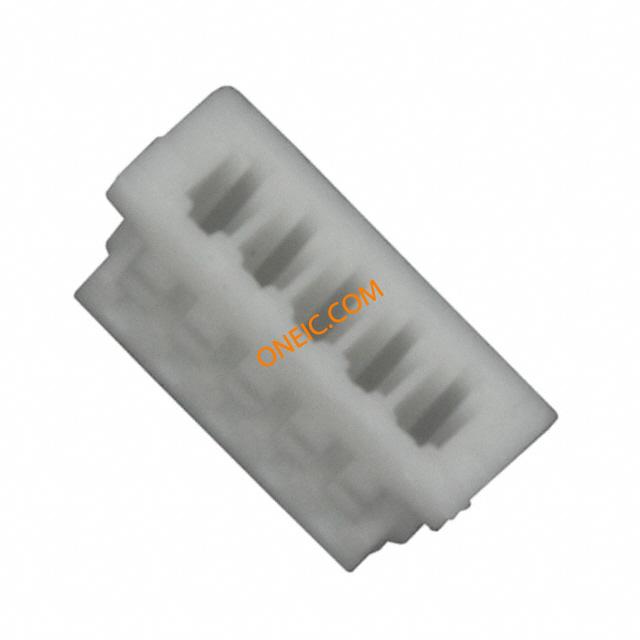

440146-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 1.25mm Crimp ST Bag High Performance Interconnects (HPI) CONN RCPT 5POS SGL 1.25MM NATRL Headers & Wire Housings 5 POS RCPT SCKT WHT 1.25mm Conn Housing RCP 5 POS 1.25mm Crimp ST Bag Product Highlights:1.25 mm CenterlineReceptacleNumber of Positions = 5Housing Color = WhiteNumber of Rows = SingleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 1.25mm WTB Socket,Housing,5p |
| 分类 |
商业参数
| 其他名称 | A98725 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 100 VAC | 输入电阻 | 100 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3/Contact A |
| 最小供电电压 | 250VAC | 保护额定电压（VPR） | 250 VAC |
机械参数
| 颜色 | Natural | 深度 | 3.95 mm |
| 间距 | 1.25 mm | 宽度 | .156 in, 3.95 mm |
| 高度 | 3.15 mm | 长度 | 8 mm [ .315 in ] |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 24-30 AWG |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 壳体材料 | Thermoplastic | 总长度 | 8 mm |
| 包装数量 | 1000 | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | 兼容外壳尺寸（如TM-700等） | 1734260-x、1734261-x、1734598-x、1734829-x |
| 安装孔直径 | 带有 | 中心触点材料 | 1.25 [0.049] |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | HPI |
| 可密封 | 否 | 产品子类型 | Receptacle |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -25C to 105C |
