点击放大查看

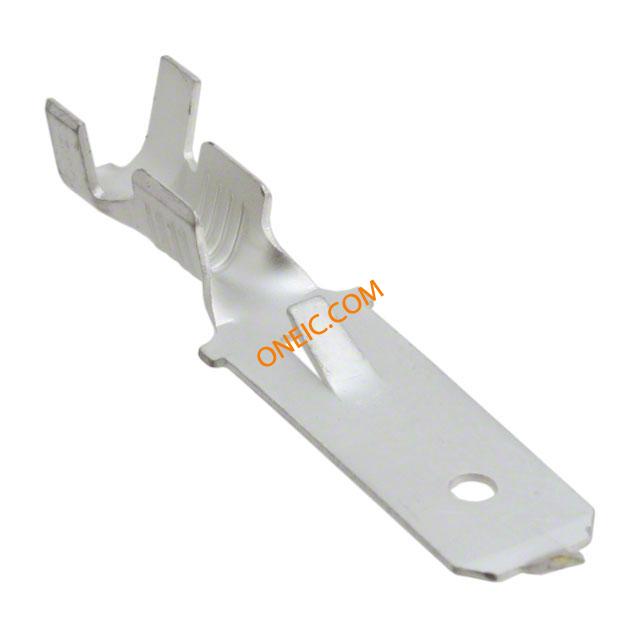

42580-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 25.65mm 7.36mm Tin Strip on Reel Terminals RCPT 18-14 AWG .253 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 14-18 AWG TIN CONN TAB FAST AWG 14-18 TIN Quick Disconnect Terminal 14-18AWG M 25.65mm 7.36mm Tin Strip on Reel Product Highlights:TabTab Fit = 6.35 x 0.41 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.05-3.68 [.120-.145] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 250 REC 18-14AWG TPBR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 8,000 | 工厂包装数量 | 8000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 最大频率 | Single | ||
机械参数
| 颜色 | Not Required | 深度 | 7.36 mm |
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.41 [.250 x .016] |
| 厚度 | 0.41 [0.016] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.620" (15.75mm) |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.016" (0.41mm) | 端子类型 | Standard |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Single or Multiple |
| 壳体镀层 | Tin | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 绝缘高度 | With | 端接样式 | Crimp |
| 适用端子尺寸 | 3.05 – 3.68 mm [ .12 – .145 in ] | 绝缘直径 | 3.05-3.68 [.120-.145] |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .41 mm [ .016 in ] | 接触镀层厚度 | 40 |
| 堆叠高度（配合） | .06 | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| 备注 | Used back-to-back for a combined thickness of .032. | 类型 | Tab |
| 连接器性别 | Male | 产品子类型 | Tab |
