点击放大查看

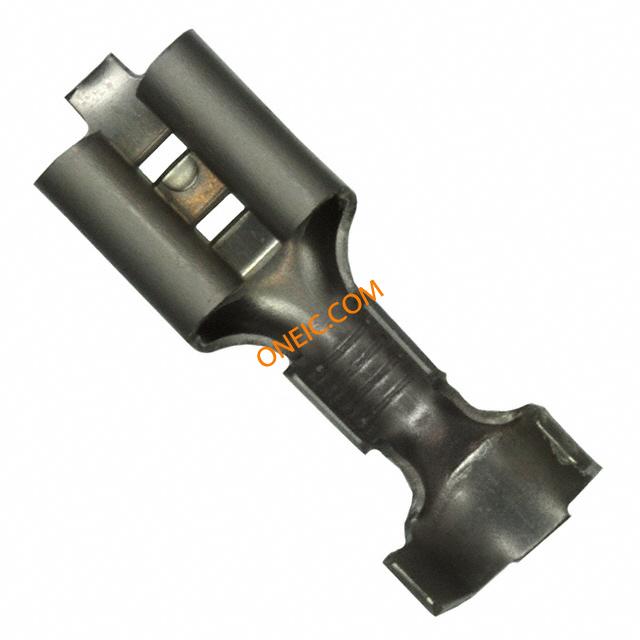

42579-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 12-16AWG RCP 21.08mm 7.62mm Nickel Strip Terminals N/I-RCPT 16-12 TYPE F FASTON Uninsulated Receptacles & Housings CONN RECEPT FASTON 12-16AWG .250 Receptacle terminal,FASTON 250,AWG 16-12 Receptacle terminal FASTON (REEL) Quick Disconnect Terminal 12-16AWG RCP 21.08mm 7.62mm Nickel Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP Receptacleterminal,FASTON250,AWG16-12 TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀镍触芯 FASTON 250 12-16AWG NPST |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 5,000 | 工厂包装数量 | 5000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | Nickel | 长度 | 20.88 mm |
| 重量 | 0 | 材料（通用） | Steel |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.46 [0.018] | 电缆类型 | Stranded |
| 绝缘类型 | Not Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 16-12 | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 7.62 mm x 7.75 mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Nickel |
| 线束直径 | 3 mm | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 触头材料 | Steel | 绝缘颜色 | :Uninsulated |
| 总长度 | Premier | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 5.33-6.73 [.210-.265] | 线规或范围 - AWG | :16AWG |
| 线规或范围 - mm² | 1.25-3.00² [16-12] | 第二连接器安装特性 | No |
产品信息
| 连接器性别 | Female | 系列 | 250 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
