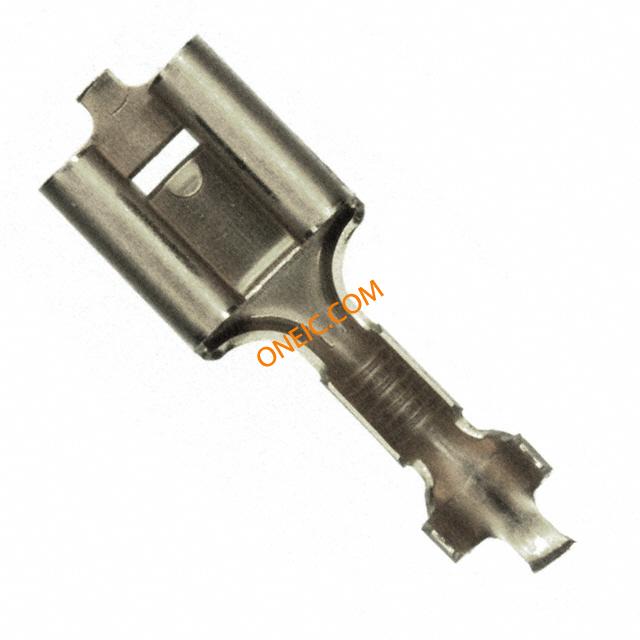

42510-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 19.3mm 7.62mm Tin Strip Terminals 22-18 AWG .250 RCPT FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 18-22 AWG .250 Quick Disconnect Terminal 18-22AWG RCP 19.3mm 7.62mm Tin Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TE Connectivity 250系列 压接插座 , 4.83 x 0.81mm FASTON 250 RECEPTACLE 22-18 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 10,000 | 工厂包装数量 | 10000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 7.62 mm |
| 表面处理 | None | 长度 | 21.46 mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.315" (8.00mm) | 导线线规 | 22-18 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 0.8mm² |
| 电缆材料 | Stranded | 连接器类型 | FASTON, 母座 |
| 接触镀层 | 无镀层 | 壳体镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Budget | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 2.29 – 3.3 mm [ .09 – .13 in ] |
| 绝缘直径 | 2.29-3.30 [.090-.130] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 4.83 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 18AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 第二连接器安装特性 | No | 外径-未扩张 | 3.3 mm [ .13 in ] |
产品信息
| 类型 | Disconnects | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | 基础产品编号 | 42510 |
