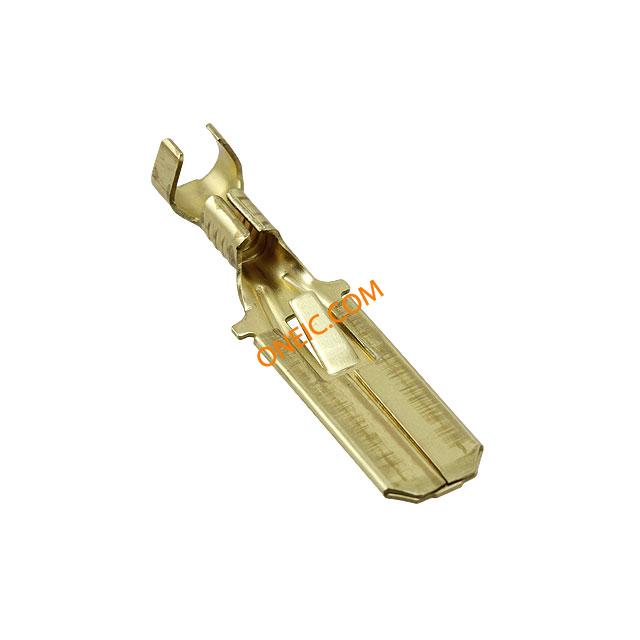

42241-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 29.18mm 6.48mm Loose Piece Terminals .250 FF TAB IS 016BR Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS TAB 14-18AWG 0.250 Crimp,Faston,rcp,strt,M,14-18awg,loose Quick Disconnect Terminal 14-18AWG M 29.18mm 6.48mm Loose Piece Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.05-4.06 [.120-.160] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm FF 250 TAB 18-16AWG BR |
| 分类 |
商业参数
| 产品 | Tab Contacts | 标准包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | ||
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.38 [0.015] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.620" (15.75mm) |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2mm² |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | 无镀层 | 封装形式 | Multiple |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Loose Piece | 绝缘高度 | With |
| 端接样式 | 公端 | 适用端子尺寸 | 3.05 – 4.06 mm [ .12 – .16 in ] |
| 接触件尾部长度 | 0.81mm | 绝缘直径 | 3.05-4.06 [.120-.160] |
| 总厚度 | .38 mm [ .015 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 堆叠高度（配合） | 1.4 mm [ .055 in ] | 线规或范围 - AWG | 14AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 触点镀层厚度 - 柱 | 6.35mm |
产品信息
| 备注 | Without Locking Hole | 类型 | Contact |
| 连接器性别 | Male | 系列 | 250 |
| CAD图纸 | 3D CAD 模型 | 产品子类型 | Tab |
