点击放大查看

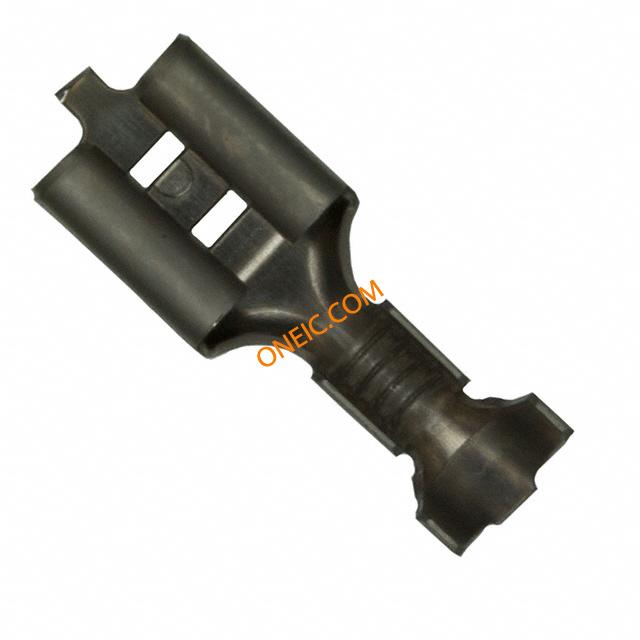

42219-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 19.17mm 7.62mm Nickel Strip Terminals .25 FAST REC 18-14 FASTON Uninsulated Receptacles & Housings CONN RECEPT FASTON 14-18AWG .250 Receptacle terminal,FASTON 250,AWG 18-14 Quick Disconnect Terminal 14-18AWG RCP 19.17mm 7.62mm Nickel Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONTACT, CRIMP, RECEPTACLE, 18-14AWG FASTONPREMIERRECST,.250FASTRECIS18-14NPST TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀镍触芯 FASTON 250 TERMINAL REC 18-14 AWG NPST |
| 分类 |
商业参数
| 产品 | Faston Terminals | 零件号别名 | 4-521098-2 |
| 产品类别 | Terminals | 标准包装数量 | 10,000 |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 量程（°/s） | :TE - FASTON 250 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 7.62 mm |
| 表面处理 | Nickel | 长度 | 0.753in |
| 重量 | 0.005 | 材料（通用） | Steel |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.41 [0.016] | 电缆类型 | Stranded |
| 绝缘类型 | Not Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 基体材料 | Steel | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Nickel | 壳体镀层 | Nickel |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 触头材料 | Steel |
| 绝缘颜色 | :Uninsulated | 总长度 | Premier |
| 刀片材料 | :Steel | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 3.05-4.32 [.120-.170] | 绝缘材料 - 材质 | :Uninsulated |
| 线规或范围 - AWG | :18AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 已删除 | Compliant |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
