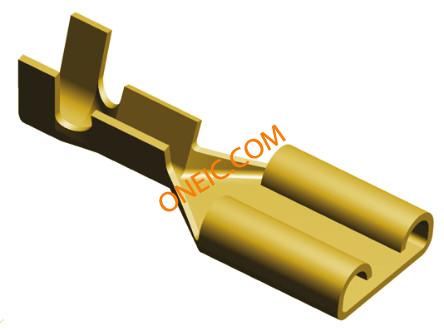

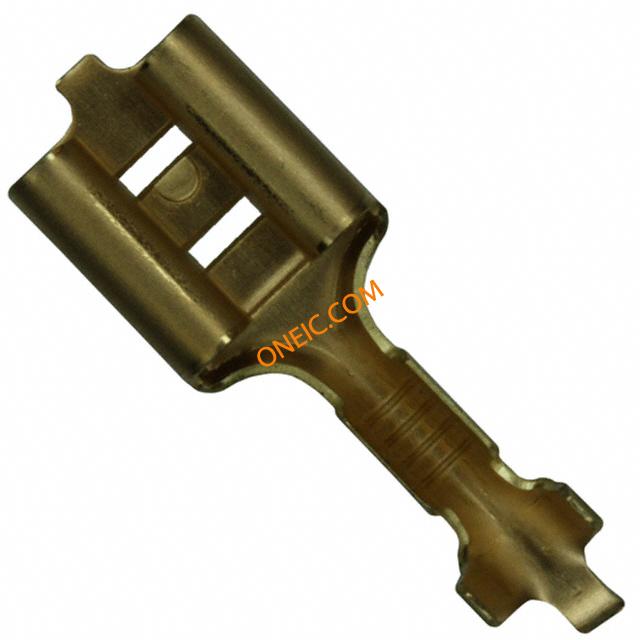

41771-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 19.05mm 7.62mm Strip Terminals RECP 250 SERIES FASTON Uninsulated Receptacles & Housings CONN RCPT F-CRIMP INSULATED Receptacle terminal,FASTON 250,AWG 22-18 Receptacle terminal,FASTON (REEL) Quick Disconnect Terminal 18-22AWG RCP 19.05mm 7.62mm Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Receptacleterminal,FASTON250,AWG22-18 TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm FASTON 250 TERMINAL REC 22-18 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107193CT |
| 标准包装数量 | 7,000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | None | 长度 | 19.05mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Stranded | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.310" (7.87mm) | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 0.8mm² | 电缆材料 | Stranded |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Premier | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 2.29 – 3.3 mm [ .09 – .13 in ] |
| 绝缘直径 | 2.29-3.30 [.090-.130] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 18AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 第二连接器安装特性 | No | 外径-未扩张 | 3.3 mm [ .13 in ] |
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
