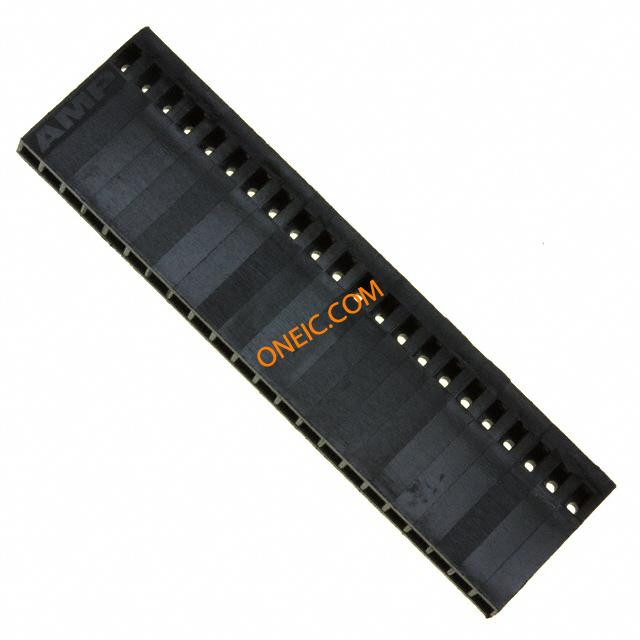

4-87499-2

点击放大查看

4-87499-2

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 22POS .100 SINGLE Headers & Wire Housings MOD IV HOUSING 22POS 4-87499-2 Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU22MODIVHSGCOMPSR.100CL 22 MODIV HSG COMP SR .100CL
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

额定电压250 VAC开关功能Unlatched
供电电压250 VAC接触电阻12 mΩ
输入电阻5000连接器阻抗压接
最大额定电流3 A保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
高度3.56 mm [ .14 in ]长度56.01 mm [ 2.21 in ]
锁定类型不带包装方式Bulk
壳体颜色黑色排间距2.54 mm
触头类型Female Socket安装类型Straight
连接器类型Receptacle安装样式Free Hanging
排数1插入件材料铍铜
壳体材料Thermoplastic包装数量1
端接样式Crimp第一触头极性Socket (Female)
触点数22接触件端接Crimp
位数22安装孔直径不带
典型触点布局同轴静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMPMODU MOD IV
产品子类型Receptacles / Sockets - Housings其他规格否

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C
