4-794620-6

点击放大查看

4-794620-6

制造商
TE Connectivity Ltd.

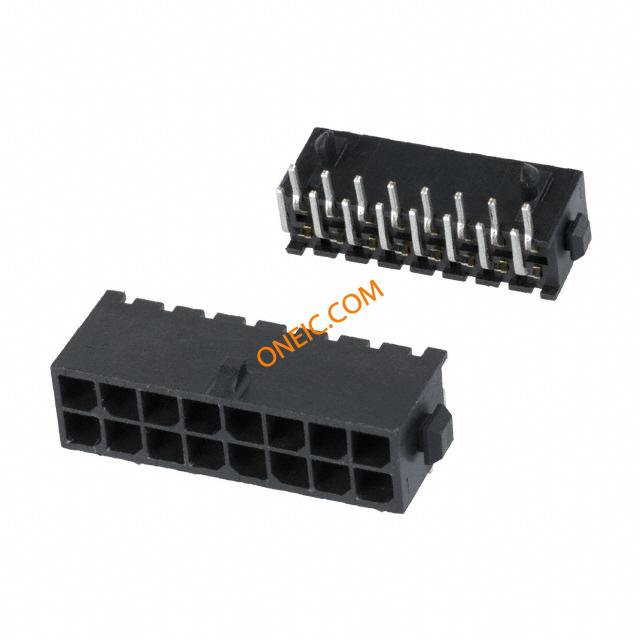

描述Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 16POS DUAL R/A GOLD Pin & Socket Connectors HDR ASSY 16P R/A 30 AU 4-794620-6 Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination TypeNumber of Positions = 16Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 16P MICRO MNL ASSY,R/A,HDR,LF
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

其他名称A34900产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94V-0

电气参数

供电电压250最大额定电流5

机械参数

颜色Black间距3 mm
密封型Not Sealed包装方式Tray
壳体颜色黑色排间距0.118" (3.00mm)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Through-Hole引脚数16
排数Dual触头材料Brass
壳体材料High Temperature Nylon安装特性板锁
包装数量130面板安装类型通孔 - 焊接
端接样式插针第一触头极性Pin (Male)
触点数16绝缘直径1.52
位数16外壳尺寸-插件插头
兼容外壳尺寸（如TM-700等）插头护套安装孔直径带有
中心触点材料3.00 [0.118]接触件表面处理 - 配合哑光
端子柱长度3.43 mm [ .135 in ]接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带后壳材料及镀层尼龙

产品信息

类型Power连接器性别HDR
产品特性Board Lock制造商全称AMP
产品子类型Header Assembly应用细节Power
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
4-794620-6?RQPN=4-794620-6

相关型号

1-794617-6

1-794617-6

te connectivity / amp

Conn Housing RCP 16 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 16POS DL MATE-N-L 16 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 16P Conn Housing RCP 16 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 16Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RCPT, DUAL ROW, 16 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;16;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 16 MATE-N-LOK Micro, 1-794617-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 16 路 直 母 连接器外壳 16POS,MICRO MNL,RCPT HSG
