4-643818-2

点击放大查看

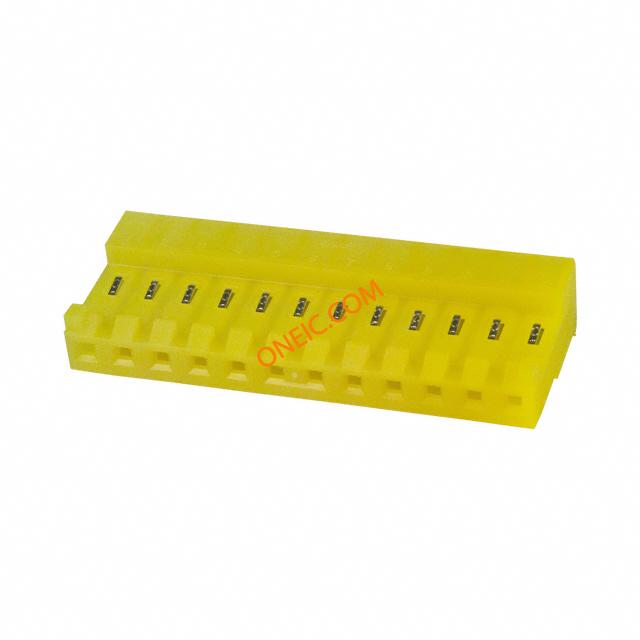

4-643818-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 12 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 20AWG MTA156 Connector FH IDC 12way Rec 20AWG MTA-156 Conn IDC Connector F 12 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Connectors12 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP ConnectorFHIDC12wayRec20AWGMTA-156 12P MTA156 CONN ASSY 20AWG YEL
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2

电气参数

额定电压600 V ac供电电压600
连接器阻抗刺破式压接 (IDC)最大额定电流7A

机械参数

颜色Yellow间距3.96 mm
长度47.55密封型Not Sealed
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色黄色电缆类型分离式导线
导线线规20 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式不带引脚数12
排数1封装形式Receptacle
壳体镀层Nickel外壳材料（壳体）标准外形
高度（英寸）9.02插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
包装数量250面板安装类型不带
主要材料IndustrialRectangular电缆端接方式IDC
端接样式插座触点数12
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数12兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局直插式接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
产品特性Closed End, Polarizing Key制造商全称MTA-156Series
产品子类型连接器组件安装类型Closed End
输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度+105°C
