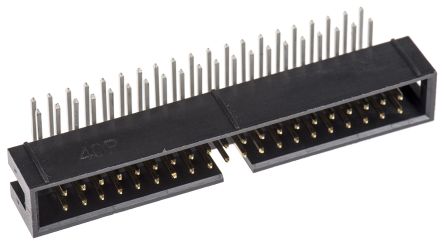

4-1634689-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole AMP-LATCH Novo Receptacle Connectors TE Connectivity 4-1634689 Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings BOX HEADER R/A 40P Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, RIGHT ANGLE, 40WAY Right-angledIDCboxedheader,40-way TE Connectivity 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接 |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 500 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | 认证机构 | :UL |
| 认可国家 | UL Listed | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 介电强度 | :500V |
| 最大额定电流 | 1 | 绝缘电阻 | 5000.0 |
机械参数
| 间距 | 2.54 mm | 重量 | 0.0561 |
| 材料（通用） | :Polyester | 端接方式 | Solder |
| 引脚间距 | :2.54mm | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Right Angle | 连接器类型 | Pin Header |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 封装形式 | 4-Sided | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic - GF |
| 主要材料 | Brass | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 配接方向 | Center / Dual Polarizing Bar |
| 触点数 | 40 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 40 | 配接堆叠高度 | With |
| 端子柱长度 | 3.02 | 触点材料 - 配合 | Gold (10) |
| 第一连接器安装类型 | :Right Angle | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 制造商全称 | 4-1634689Series |
| 产品子类型 | Headers | 其他规格 | Without |
环境参数
| 温度额定值 | Standard | 工作温度 | -40.0 - 105.0 |
文档与媒体
相关型号
499252-1
te connectivity / amp
Connector Accessories 40 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 40POS SOCKET CONN 40 way IDC strain relief Connector Accessories 40 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 40Search Keywords:input/output, paddleboard, paddle board STRAIN RELIEF, 40WAY StrainRelief,CableConnector;40;Thermoplastic;UL94V-0;Black Strain relief 40P, 499252-1, TE Connectivity TE Connectivity 40路 应力释放支架, 使用于 AMP-LATCH NOVO 系列 040 STRAIN RELIEF A-L RCPT
5499922-9
te connectivity / amp

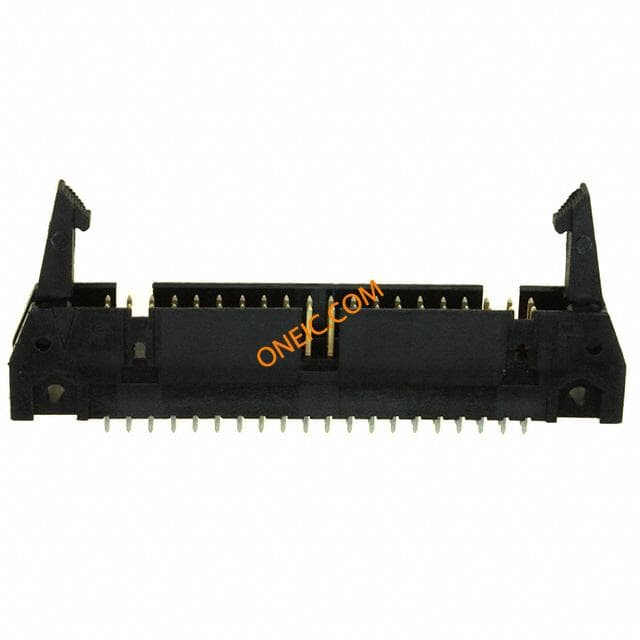

Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 40 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 40WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,40POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P VERT LG LAT
