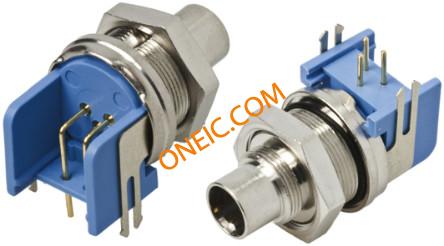

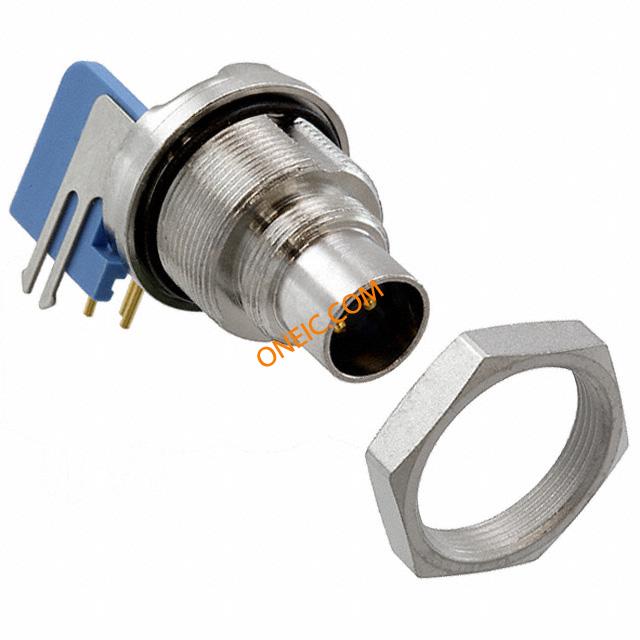

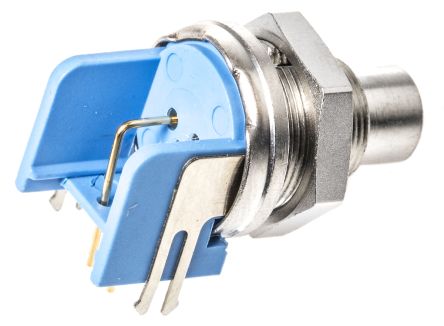

4-1437719-5
| 制造商 | |
| 描述 | Conn Shielded Circular Subminiature PIN 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Standard Circular Connector PIN HDR 3P R/A 3A PCB Shielded Circular Subminiature Connectors (TRIAD 01) CONN PLUG PIN 3POS SLD PNL R/A 3 Pole Male Right Angle Through Hole Industrial & Automation Circular Connector with Male Contacts Conn Shielded Circular Subminiature PIN 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, Triad01,3w90degPCBmountplug,3A Connector: circular; socket; male; PIN:3; gold plated; 3A; IP65 TE Connectivity TRIAD™ 01 系列 3路 通孔 直角 连接器 插头 T01-0560-P03-MALE REC PANEL-PCB MOUNT RA |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | DIN 40050 |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 测试电压 | 625V | 额定电压 | 60VAC |
| 供电电压 | 60 | 连接器阻抗 | 超小型 |
| 最大额定电流 | 3A | ||
机械参数
| 密封型 | 否 | 重量 | 5.69 g |
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触头类型 | Socket | 安装类型 | Through Hole |
| 连接器类型 | Plug, Male Pins | 紧固类型 | Threaded |
| 安装样式 | ThroughHole | 锁定特性 | threaded joint |
| 壳体材料 | CuZn | 总长度 | 25.9 |
| 包装数量 | 3 | 主要材料 | Connector |
| 尺寸/外形 | see | 端接排数 | 焊接 |
| 连接器 - 电缆 | socket | 端接样式 | Solder Tail |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 位数 | 3 | 镀层厚度（通用） | 4µm |
| 外壳材料及表面处理 | Brass, Tribor Plated | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 3 | 类型 | Shielded Circular Subminiature |
| 连接器性别 | PL | 系列 | Super Seal |
| 产品特性 | Board Lock, Shielded | 可密封 | 是 |
| 制造商全称 | Triad01 | 产品子类型 | Connectors |
| 适配器系列 | TRIAD 01 | 单元数量 | 1 |
环境参数
| 机械寿命 | 500cycles | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | -40°C ~ 85°C | ||
