点击放大查看

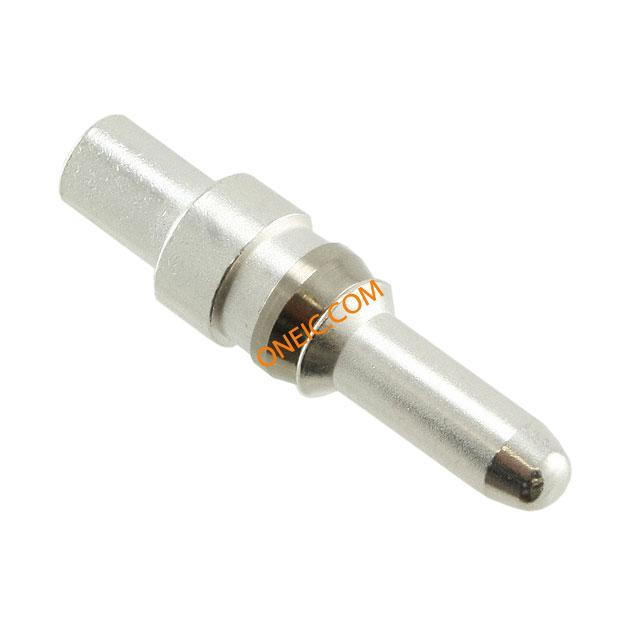

4-1105150-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN TERM MALE CRIMP SILVER Heavy Duty Power Connectors HSS-C-STI.AG 10 0 Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HSS-C-Sti.Ag.10,0 qmm |
| 分类 |
商业参数
| 其他名称 | 411051501 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接触电阻 | 1 | 连接器阻抗 | 压接 |
| 最大额定电流 | 63 | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 7 AWG |
| 端接方式 | Crimp | 触头类型 | Pin |
| 插针或插孔 | Pin | 连接器类型 | Connector Rectangular |
| 接触镀层 | Silver | 插入件材料 | 铜合金 |
| 触头材料 | Brass | 包装数量 | Loose Piece |
| 尺寸/外形 | 10 mm², 14 – 4 美国线规 | 端接排数 | 压接 |
| 端接样式 | Crimp | 导线剥线长度 | 12.00 [0.472] |
| 接触件端接 | Crimp | 接触件表面处理 - 配合 | 银 |
| 线规或范围 - mm² | 10.00² [7] | ||
产品信息
| 备注 | Use with HSS Series Inserts | 类型 | Machined |
| 连接器性别 | PIN | 系列 | HSS |
| 产品子类型 | Contact | ||
