350986-4

制造商	TE Connectivity Ltd.
描述	Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN Power to the Board PCB SOCKET HDR 2P Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL HDR ASSY LNG/TL
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品类别	Power to the Board	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
零件状态	E28476	CSA档案号	LR7189
标准编号	CSA, UL	CSA认证	Certified
UL阻燃等级	UL 94V-2	认证机构标志	是

电气参数

额定电压	600 V	供电电压	600
最大额定电流	19 A	最小供电电压	600VDC/600VAC

机械参数

颜色	Natural	间距	6.35 mm
宽度	13.97	高度	14.73 mm
长度	13.97	密封型	Not Sealed
包装方式	Bulk	端接方式	Solder
触头类型	Female Socket	安装类型	Through Hole
连接器类型	Header	接触镀层	Tin
紧固类型	Locking Ramp	安装样式	Through Hole
引脚数	2	排数	1
封装形式	Receptacle	高度（英寸）	7.62
触头材料	Phosphor Bronze	壳体材料	Polyamide (PA)
包装数量	100	面板安装类型	通孔 - 焊接
端接样式	插针	第一触头极性	Socket (Female)
触点数	2	位数	2
兼容外壳尺寸（如TM-700等）	与插头护套插接（使用插针端子）	安装孔直径	带有
接触件表面处理 - 配合	预镀锡	典型触点布局	直插式
端子柱长度	3.18 mm [ .125 in ]	接触镀层厚度	2.54 µm [ 100 µin ]
静电放电屏蔽	不带	护套（绝缘）厚度	1.27 µm [ 50 µin ]

产品信息

类型	Power	连接器性别	SKT
产品子类型	Headers	端口数	1 Port
应用细节	Power	装配配置	Without
加载位置数	All

环境参数

测试温度	标准件 - 非灼热丝	工作温度	-40 – 105 °C [ -40 – 221 °F ]
封装热阻	1.57 mm [ .062 in ]

文档与媒体

在线文档

350986-4?RQPN=350986-4

相关型号

1-480698-5

te connectivity / amp

Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L GREEN Power to the Board 02P PLUG HSG GRN Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG GRN

¥0.8532

详情

1-480698-6

te connectivity / amp

Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L BLUE Power to the Board 02P PLUG HSG BLU Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG BLU

¥0.7790

详情

1-480698-9

te connectivity / amp

Conn Housing PL 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 2POS 94V-2 BLK Housing FH 2 way Pin/sckt UMNL Power to the Board PLUG HOUSE 2 POS BLACK UL94V-2 Conn Housing PL 2 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;PlugHsg;2Pos;UnivMATE-N-LOK;Black 02P UMNL PLUG HSG BLK

¥0.6552

详情

350848-2

te connectivity / amp

Conn Power SKT 2 POS 6.35mm ST Cable Mount 2 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-MATE-N-LOK Pin & Socket Connectors 2P PLUG TEST ASSY 94V0 Conn Power SKT 2 POS 6.35mm ST Cable Mount 2 Terminal 1 Port Loose Piece Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG TEST ASSY 94VO

¥262.7352

详情

1-480698-0

te connectivity / amp

Conn Housing PL 2 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS 94V-2 UNI-MATE Housing,plug,free hanging,2way Pin & Socket Connectors PLUG HOUSE 2 POS Conn Housing PL 2 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 2WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Plug;Nylon;Natural;19A Plug; wire-wire; male/female; 6.35mm; PIN:2; UL94V-2; Locking: lock Crimp housing Pitch6.35 mm Poles 2 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480698-0, TE Connectivity 02P UMNL PLUG HSG NATL

¥0.6984

详情

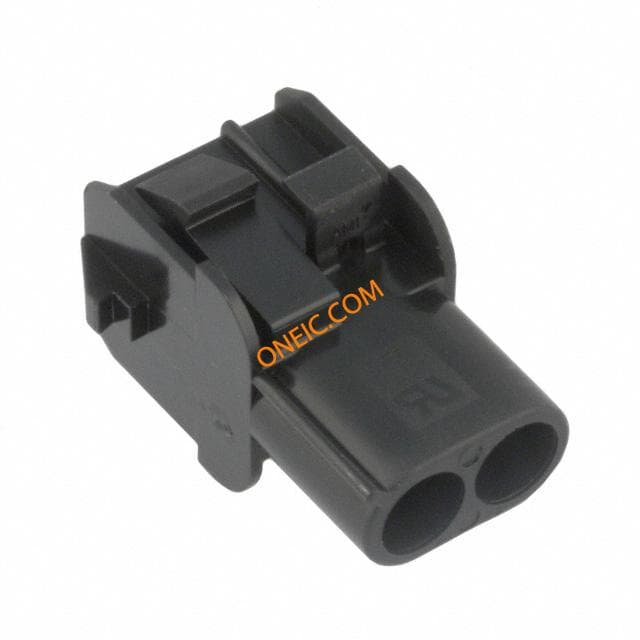

794815-1
