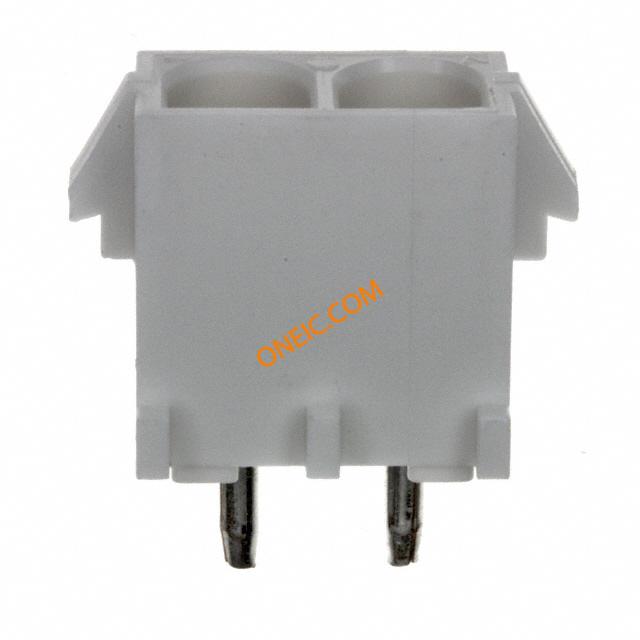

350831-1

点击放大查看

350831-1

制造商
TE Connectivity Ltd.
描述Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Pin & Socket Connectors 2P PCB SOCKET HEADER .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Universal MATE-N-LOK 2 Position Through-Hole Single Row Straight Header 02P UMNL HDR ASSY PC 94VO
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSRoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0认证机构标志是

电气参数

额定电压600 V供电电压600
最大额定电流19 A

机械参数

颜色White间距6.35 mm
宽度7.62长度13.97
密封型Not Sealed包装方式Bulk
壳体颜色白色端接方式Solder
触头类型Female Socket安装类型Through Hole
连接器类型Header接触镀层Pre Tin
紧固类型Locking Ramp安装样式Through Hole
引脚数2排数1
封装形式Receptacle高度（英寸）13.97
触头材料Phosphor Bronze壳体材料Polyamide (PA)
包装数量100面板安装类型通孔 - 焊接
端接样式插针第一触头极性Socket (Female)
触点数2绝缘直径5.08
位数2兼容外壳尺寸（如TM-700等）与插头护套插接（使用插针端子）
安装孔直径带有接触件表面处理 - 配合预镀锡
典型触点布局直插式端子柱长度3.18 mm [ .125 in ]
接触镀层厚度2.54 µm [ 100 µin ]静电放电屏蔽不带
每排/每行位置数All护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

类型Power连接器性别SKT
系列Universal Mate-N-Lok产品子类型PCB Receptacles
应用细节Power装配配置Without
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻1.57 mm [ .062 in ]
