350824-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 2 POS STD TAIL SOCKT Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 2 WAY UNIVM-N-LHEADER,02PUMNLHDRASSYPC94VO TE Connectivity Universal MATE-N-LOK 系列 2路 直 6.35mm节距 通孔 公 RJ45-Rangierfeld, 功率 02P UMNL HDR ASSY PC 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 最大额定电流 | 19A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 7.62 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 1.394 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 主要材料 | InterconnectSystem | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 接触件端接 | :Through Hole Vertical |
| 位数 | 2 | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Receptacle Housings |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
相关型号
1-480698-5
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L GREEN Power to the Board 02P PLUG HSG GRN Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG GRN
1-480698-6
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L BLUE Power to the Board 02P PLUG HSG BLU Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG BLU

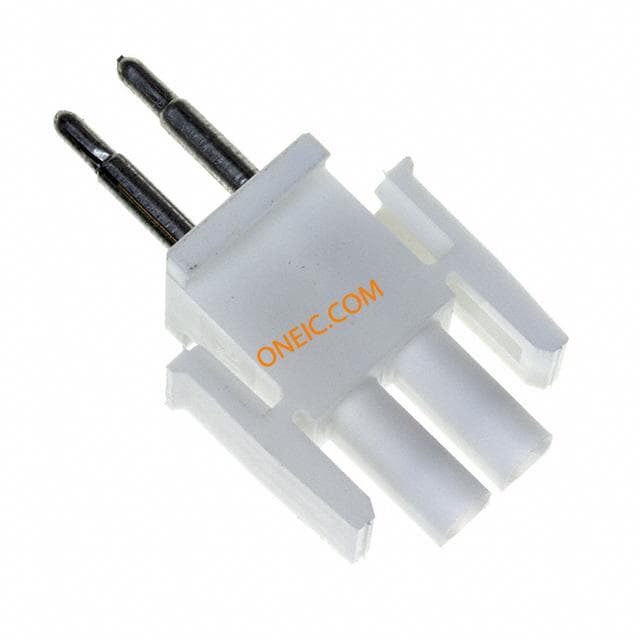

350848-2
