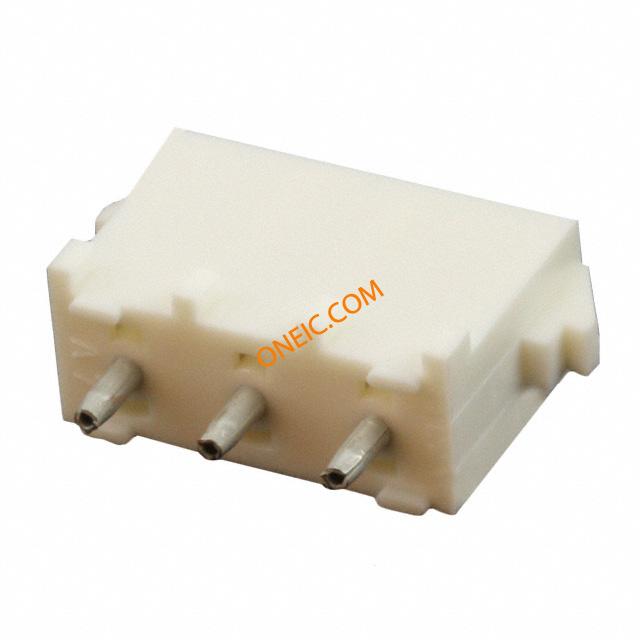

350789-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT UMNL GOLD MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Power to the Board HDR PIN 1X03C VRT V0 Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER,PIN,3WAY,180DEG Conn;Header;Plug;3Pos;UnivMATE-N-LOK;Vertical;White;Gold TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL PIN HDR ASSY 94VO |
| 分类 |
商业参数
| 其他名称 | 3507893 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 19A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 深度 | 7.62 mm |
| 间距 | 6.35 mm | 高度 | 13.97 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 20.32 mm |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 位数 | 3 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -65C to 105C | 结工作温度 | 105C |
