350786-1

点击放大查看

350786-1

制造商
TE Connectivity Ltd.
描述Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 2 POS STD TAIL PIN Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, PLUG, VERTICAL, SINGLE ROW, 2WAY Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;2;Nylon Socket; wire-board; male; 6.35mm; PIN:2; tinned; Pin layout:1x2 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 2路 直 PCB 针座, 焊接端接, 19A , 通孔 02P UMNL HDR ASSY 94VO
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
材料阻燃等级:UL94V-0

电气参数

量程（°/s）:TE - Universal MATE-N-LOK Series额定电压600 V ac
工作电压:600V接触电阻:3.5mohm
介电强度:2900V/m最大额定电流19A
绝缘电阻:1000Mohm最小供电电压600VAC

机械参数

颜色White深度7.62 mm
间距6.35 mm高度14.73 mm
重量0.002材料（通用）:Clear nylon
包装方式Bulk方向straight
端接方式Solder触头类型Male Pin
引脚间距:6.35mm柱间距6.35mm
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Tin紧固类型Locking Ramp
安装样式Through Hole排数1
锁定特性lock材料表面处理:-
触头材料Phosphor Bronze壳体材料Polyamide (PA)
包装数量100连接器 - 电缆socket
第一触头极性Pin (Male)触点数2
接触件端接:Through Hole Vertical位数2
安装孔直径:1.8mm触点材料 - 镀层tinned
第一连接器安装特征1x2

产品信息

SPG100类型Power
连接器性别HDR系列MATE-N-LOK
CAD图纸3D CAD Model产品子类型Receptacle Housings
适配器系列Universal MATE-N-LOK端口数1 Port
单元数量1加载位置数All

环境参数

插拔次数:50工作温度:105°C

文档与媒体

1650929.pdf
350786-1?RQPN=350786-1

相关型号

1-480698-5

1-480698-5

te connectivity / amp

Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L GREEN Power to the Board 02P PLUG HSG GRN Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG GRN

¥0.8532
详情
1-480698-6

1-480698-6

te connectivity / amp

Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L BLUE Power to the Board 02P PLUG HSG BLU Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG BLU

¥0.7790
详情
1-480698-9

1-480698-9

te connectivity / amp

Conn Housing PL 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 2POS 94V-2 BLK Housing FH 2 way Pin/sckt UMNL Power to the Board PLUG HOUSE 2 POS BLACK UL94V-2 Conn Housing PL 2 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;PlugHsg;2Pos;UnivMATE-N-LOK;Black 02P UMNL PLUG HSG BLK

¥0.6552
详情

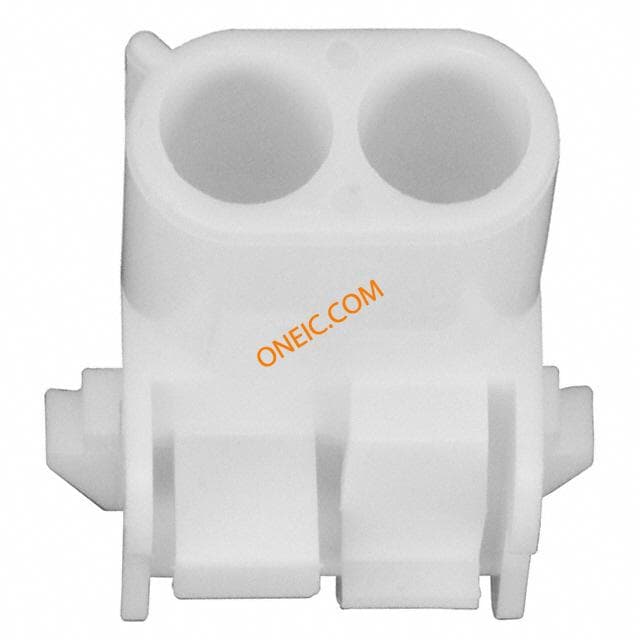

350778-1
