350582-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 GOLD Pin & Socket Connectors HDR PIN 1X02C VRT V2 Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PIN HDR ASSY V2 LF |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 密封型 | Not Sealed |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | PCB |
| 引脚数 | 2 | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 100 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 位数 | 2 |
| 外壳尺寸-插件 | 母端, 母端 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插座端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 哑光 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.05 mm [ .12 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Universal Mate-N-Lok | 产品子类型 | Headers |
| 端口数 | 1 Port | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
相关型号
1-480698-5
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L GREEN Power to the Board 02P PLUG HSG GRN Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG GRN
1-480698-6
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L BLUE Power to the Board 02P PLUG HSG BLU Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG BLU
1-480698-9
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 2POS 94V-2 BLK Housing FH 2 way Pin/sckt UMNL Power to the Board PLUG HOUSE 2 POS BLACK UL94V-2 Conn Housing PL 2 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;PlugHsg;2Pos;UnivMATE-N-LOK;Black 02P UMNL PLUG HSG BLK
1-480698-0
te connectivity / amp
Conn Housing PL 2 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS 94V-2 UNI-MATE Housing,plug,free hanging,2way Pin & Socket Connectors PLUG HOUSE 2 POS Conn Housing PL 2 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 2WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Plug;Nylon;Natural;19A Plug; wire-wire; male/female; 6.35mm; PIN:2; UL94V-2; Locking: lock Crimp housing Pitch6.35 mm Poles 2 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480698-0, TE Connectivity 02P UMNL PLUG HSG NATL

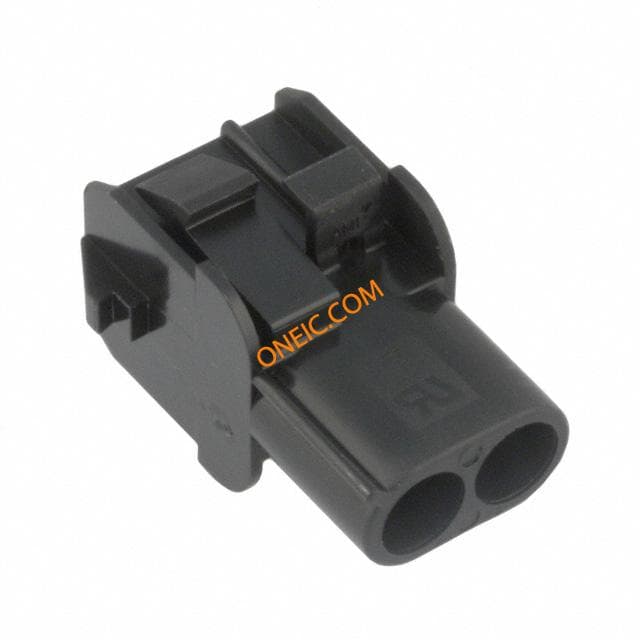

794815-1
