点击放大查看

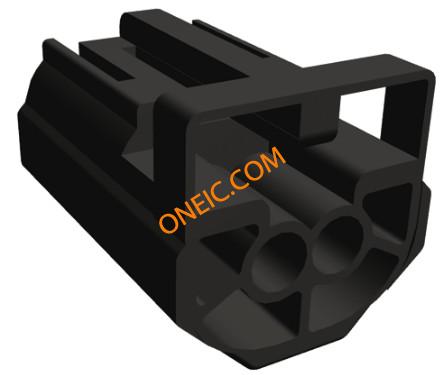

344276-1
| 制造商 | |
| 描述 | Conn Housing RCP 2 POS 4.8mm Crimp ST Econoseal III 2 WAY REC HSG SIL SEAL ECONO 2 way Econoseal III receptacle housing Automotive Connectors 2P Female Conn Housing RCP 2 POS 4.8mm Crimp ST Product Highlights:HousingHousing Type = ReceptacleColor = BlackNumber of Positions = 2Terminate To WireSearch Keywords:automotive, sealed, wire-to-wire, and wire-to-pc board, polarized mating, discrete cable sealing, tree clip, tree, christmas tree, fixation clip HOUSING, 2WAY 2wayEconosealIIIreceptaclehousing TE Connectivity EconoSeal III 070 系列 4.8mm 节距 2 路 直 母 PCB 壳体 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Connectors | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Black | 深度 | 27.6mm |
| 间距 | 4.8 mm | 宽度 | 19.8mm |
| 长度 | 20.6mm | 重量 | 0.004 |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | Nylon | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 344276 |
| 适用产品/相关产品 | Econoseal III Connector | ||
