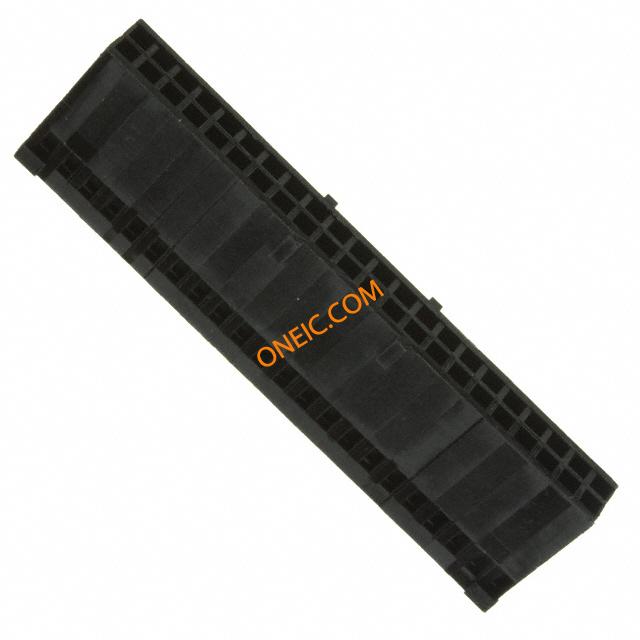

3-87631-9

点击放大查看

3-87631-9

制造商
TE Connectivity Ltd.
描述
Conn Housing RCP 44 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 44POS .100 POL DUAL Conn Housing RCP 44 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 44Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 44 MODIV HSG COMP DR .100 POL
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

供电电压250 VAC接触电阻12 mΩ
输入电阻5000连接器阻抗压接
最大额定电流3保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
高度6.1 mm [ .24 in ]长度55.88 mm [ 2.2 in ]
锁定类型带有包装方式Bulk
壳体颜色黑色导线线规20-30 AWG
排间距0.100" (2.54mm)触头类型Female Socket
安装类型Straight连接器类型Receptacle
紧固类型Locking Ramp排数2
插入件材料铍铜壳体材料尼龙 - GF
包装数量1端接样式插座
触点数44接触件端接Crimp
位数44兼容外壳尺寸（如TM-700等）公端
安装孔直径带有静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP产品子类型连接器
抽头/步进数2其他规格否

环境参数

测试温度标准部件 - 非辉光导线工作温度-65 – 105
