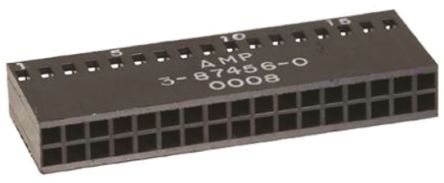

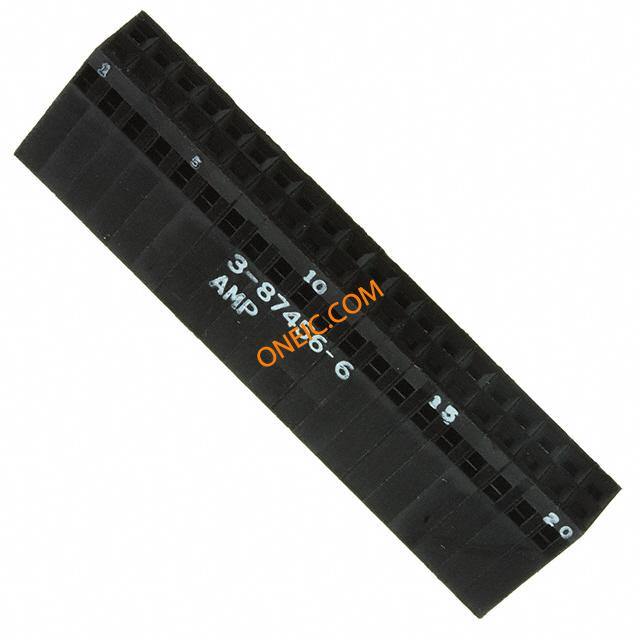

3-87456-6

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 40POS .100 DUAL Headers & Wire Housings HSG 2X20C F/H Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 40Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;40;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 40 路直母电缆安装 PCB 连接器外壳 40 MODIV HSG DR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85369010

电气参数

额定电压	250 VAC	击穿电压	750V
最大额定电流	3A	绝缘电阻	5000 MOhms
连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	间距	2.54 mm
重量	0.003	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	CrimpSnap-In
触头类型	Female Socket	极化	No
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	接触镀层	:-
排数	2	触头材料	:-
壳体材料	Nylon	总长度	2.005"
主要材料	InterconnectSystem	连接器 - 电缆	Yes
插针孔直径	0.1"	触点数	40
接触件端接	Crimp	位数	40

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
应用细节	Board-to-Board	矩阵（列×行）	0.100x0.100in.
有铅工艺兼容	:Yes

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

1650916.pdf

在线文档

3-87456-6?RQPN=3-87456-6
