点击放大查看

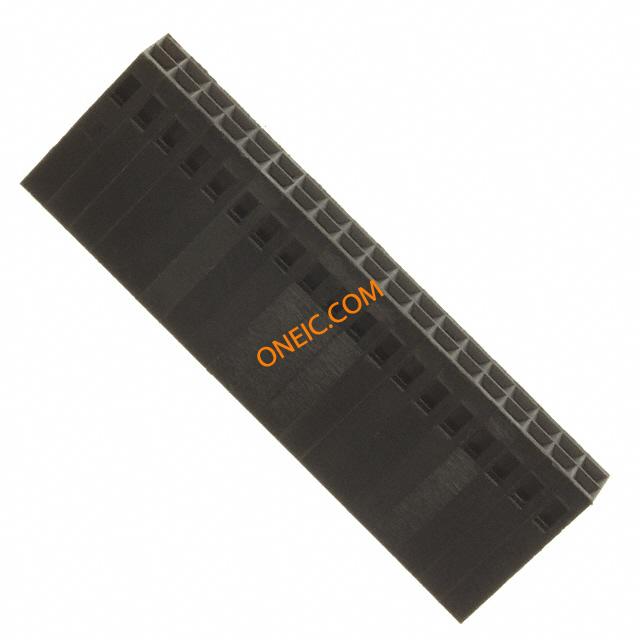

3-87456-3
| 制造商 | |
| 描述 | Conn Housing RCP 38 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 38POS .100 DUAL ROW 38 MODIV HSG COMP DR .100CL 38 MODIV HSG COMP DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 接触电阻 | 12 mΩ |
| 输入电阻 | 5000 | 连接器阻抗 | 压接 |
| 最大额定电流 | 3 | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 6.1 mm [ .24 in ] | 长度 | 48.39 mm [ 1.91 in ] |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 排数 | 2 |
| 插入件材料 | 铍铜 | 壳体材料 | 尼龙 - GF |
| 包装数量 | 1 | 端接样式 | 插座 |
| 触点数 | 38 | 接触件端接 | Crimp |
| 位数 | 38 | 兼容外壳尺寸（如TM-700等） | 端子 |
| 安装孔直径 | 不带 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | 连接器 |
| 其他规格 | 否 | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65 – 105 |
