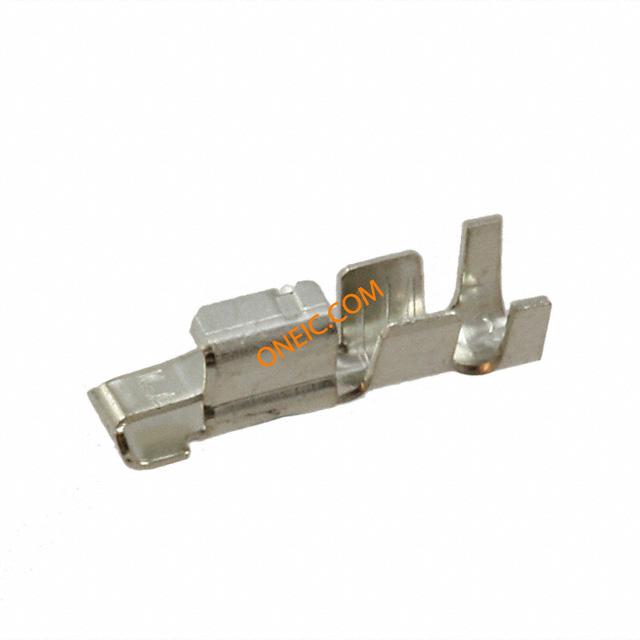

3-647485-1

制造商	TE Connectivity Ltd.
描述	Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings SL-156 SKT 16AWG PHBZ/SN CONN RCPT HOODED CONTACT SL-156 SL156 HOODED CONT,LID, LP LF
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称	36474851	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	250 V	供电电压	250
连接器阻抗	压接

机械参数

包装方式	Bulk	电缆类型	分离式导线, 绞线
导线线规	16 AWG	端接方式	Crimp
触头类型	Signal	插针或插孔	Socket
连接器类型	Connector Headers and PCB Receptacles	接触镀层	Bright Tin Over Nickel
壳体镀层	Nickel	插入件材料	磷青铜
触头材料	Brass	安装特性	带有
包装数量	1000	绝缘高度	Yes
端接样式	Crimp	第一触头极性	Socket (Female)
端接表面处理	带有	接触件端接	Crimp
绝缘直径	1.78 – 2.84 mm [ .07 – .112 in ]	镀层厚度（通用）	锡
兼容外壳尺寸（如TM-700等）	SL-156 大绝缘直径电线	触头长度-柱	电源
端子螺钉表面处理	亮光	接触镀层厚度	80µin (2.03µm)
护套（绝缘）厚度	1.27 µm, 50 µin

产品信息

连接器性别	SKT	系列	SL-156
产品子类型	Contacts

环境参数

工作温度

-55 – 105 °C [ -67 – 221 °F ]
