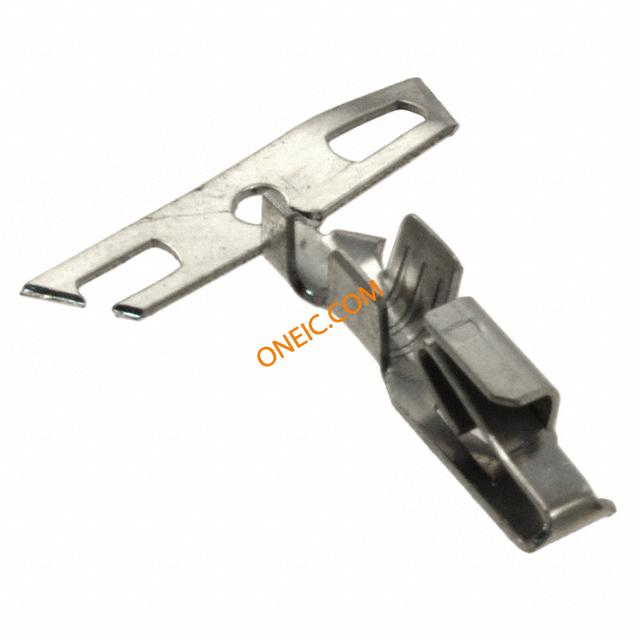

3-647466-1

制造商	TE Connectivity Ltd.
描述	Contact SKT Crimp ST Cable Mount Strip Heavy Duty Power Connectors RECPT CONTACT HOODED LARGE WIRE CONN RCPT HOODED CONTACT SL-156 SL156 HOODED CONTACT, LID LF SL156 HOODED CONTACT, LID LF Search Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称	A100925CT	标准包装规格	5,500
产品类别	Heavy Duty Power Connectors	标准包装数量	Tape & Reel
工厂包装数量	22000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

供电电压

250

连接器阻抗

压接

机械参数

包装方式	Tape & Reel (TR)	电缆类型	分离式导线
导线线规	16 AWG	端接方式	Crimp
触头类型	Signal	插针或插孔	Socket
连接器类型	Connector Headers and PCB Receptacles	接触镀层	Tin
插入件材料	磷青铜	触头材料	Phosphor Bronze
包装数量	5500	端接样式	锁定枪
接触件端接	Crimp	绝缘直径	1.78 – 2.84 mm [ .07 – .112 in ]
镀层厚度（通用）	锡	触头长度-柱	电源
端子螺钉表面处理	亮光	接触镀层厚度	80µin (2.03µm)

产品信息

制造商	.2	连接器性别	SKT
产品子类型	接触件

环境参数

工作温度

-25 – 105

文档与媒体

在线文档

3-647466-1?RQPN=3-647466-1
