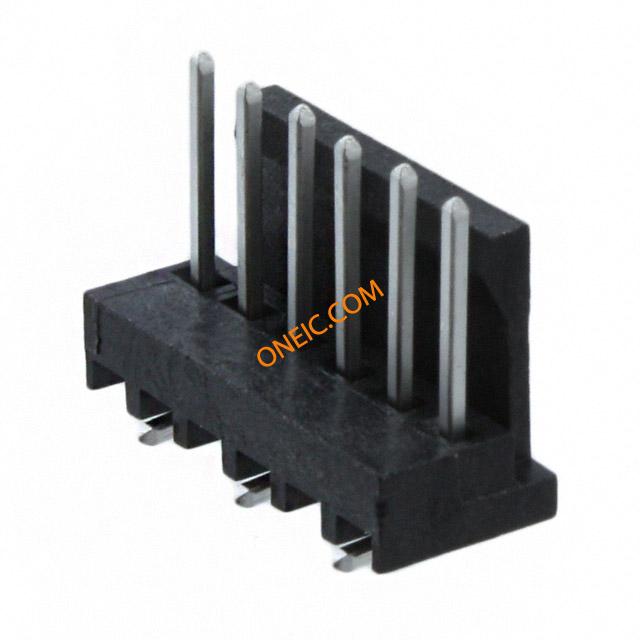

3-647166-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 6 POS 2.54mm Solder ST SMD MTA-100 CL Connectors CONN HEADER 6POS VERT .100 TIN Headers & Wire Housings HDR 06P VRT F-LOCK SMT Conn Wire to Board HDR 6 POS 2.54mm Solder ST SMD Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, HEADER, 6POS, 1ROW TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 表面安装 6P MTA100 HDR ASSY,SM,FL,LF |
| 分类 |
商业参数
| 其他名称 | 36471666 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250.0 |
| 开关功能 | Friction Lock | 接触电阻 | 6 mohm |
| 最大额定电流 | 5/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 6.35 mm |
| 间距 | 2.54 mm | 高度 | 10.54 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 遮蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Pin | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Header |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 安装样式 | Surface Mount | 排数 | 1 |
| 连接器样式 | Plug | 锁定特性 | Friction Lock |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon 4/6 |
| 总长度 | 15.24 mm | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | Copper Alloy |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | SMD |
| 第一触头极性 | Pin (Male) | 触点数 | 6 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 6 |
| 后壳中断功能 | Without | 中心触点表面处理 | 2.54 |
| 配接堆叠高度 | With | 接触长度 - 配合 | 0.290" (7.37mm) |
| 触点材料 - 柱 | Copper Alloy | 表面贴装焊盘尺寸 | Yes |
| 端子柱长度 | 3.18 | 恢复后小径 | No |
| 触点材料 - 配合 | Tin | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-100 | 产品子类型 | Headers |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
