3-647017-8
| 制造商 | |
| 描述 | Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 24AWG .100 WHITE Headers & Wire Housings 08P MTA100 PSTD CONN ASSY LF 08P MTA100 PSTD CONN ASSY LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 额定交流电压 | 250 | 连接器阻抗 | IDC |
| 最大额定电流 | 5 | ||
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 高度 | 12.55 mm [ .494 in ] | 长度 | 22.86 mm [ .9 in ] |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 白色 |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 24 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Closed End |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 安装样式 | Wire | 排数 | 1 |
| 壳体镀层 | Nickel | 连接器用途 | Receptacle |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | 100 | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 8 | 端接表面处理 | 带有 |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 8 |
| 兼容外壳尺寸（如TM-700等） | 标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 15µin (0.38µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.2² [24] |
| 静电放电屏蔽 | 带有 | 护套（绝缘）厚度 | 1.27 µm, 50 µin |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
文档与媒体
相关型号
640550-8
te connectivity / amp

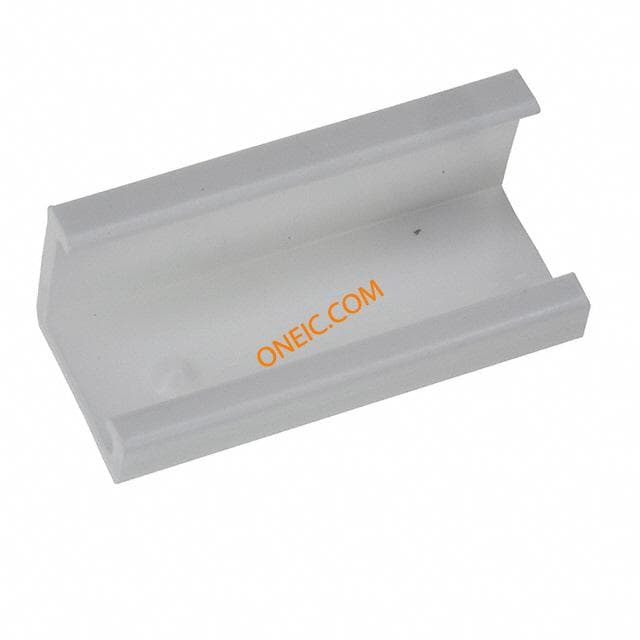

Connector Accessories 8 POS Closed End Dust Cover Polyester White MTA, CST and SL Accessories CONN DUST COVER 8POS CLOSED Headers & Wire Housings DUST COVER 8P Closed End Connector Accessories 8 POS Closed End Dust Cover Polyester White Product Highlights:Dust CoverWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 8Used For MTA-100 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP DUST COVER, 8WAY DustCover;ClosedEnd;8;White;AMPBrand;MTA-100Connector Protection cover; MTA-100; PIN:8; Mat: polyester; UL94V-0 Cover 8P, 640550-8, TE Connectivity TE Connectivity IDC 连接器 08P MTA100 COVER
643075-8
te connectivity / amp

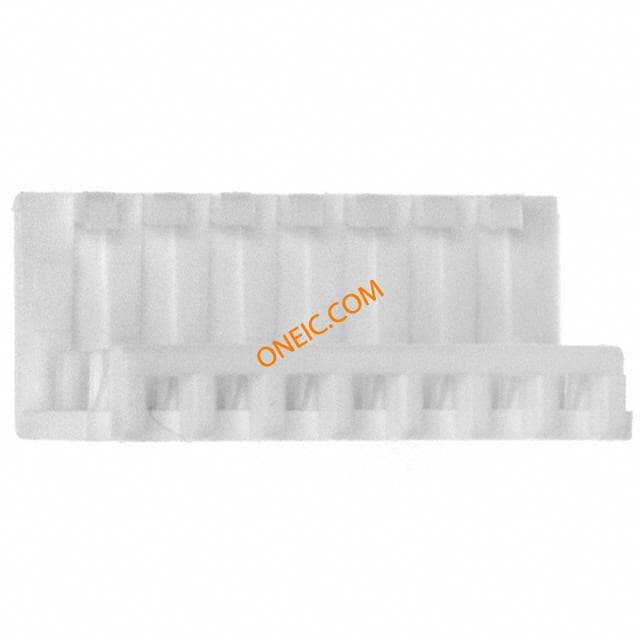

Connector Accessories 8 POS Strain Relief Closed End Covers Nylon White MTA, CST and SL Accessories CONN STRAIN RELIEF COVER 8POS 8w IDC closed end strain relief cover Headers & Wire Housings STRAIN RLF COVER 8P Closed End Connector Accessories 8 POS Strain Relief Closed End Covers Nylon White Product Highlights:Strain Relief CoversWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 8Used For MTA-100 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CLOSED END STRAIN RELIEF COVER, NYLON Cover,StrainRelief;MTA-100Connectors;Nylon;ClosedEnd;8;White;AMP Cover with strain relief 8P, 643075-8, TE Connectivity TE Connectivity MTA 8路 应力释放支架, 使用于 CST-100 II 和 SL-156 和 AMP 经济型电源 (EP) 连接器、MTA-100 08P MTA100 MOLDED COVER
