3-647001-6

点击放大查看

3-647001-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 24AWG .100 WHITE Headers & Wire Housings 06P MTA100 PSTD CONN ASSY SN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector6 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100 Series 6 Position 24AWG Closed End Receptacle 06P MTA100 PSTD CONN ASSY SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格125产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量125

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色White间距2.54 mm
高度12.55 mm [ .494 in ]长度17.78 mm [ .7 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型Discrete or Ribbon Cable导线线规24 AWG
端接方式IDT触点形式Male Pin
触头类型Male Pin第二连接器Without
外壳颜色White安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin
触点时序Without安装样式Wire
排数1壳体镀层Nickel
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
安装特性Without包装数量125
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数6
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数6
兼容外壳尺寸（如TM-700等）标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.2² [24]
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
可密封否主要用途Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire输出配置Free Hanging (In-Line)
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
3-647001-6?RQPN=3-647001-6

相关型号

3-643814-6

3-643814-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 6w IDC closed end connector MTA-100 Headers & Wire Housings CLOSED WITH TABS 6P white tin 24 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM CONNECTOR,RECEPTACLE,MTA-100,6POSITION,CLOSEDEND,POLARIZED,WHITE Connector: wire-board; MTA-100; plug; female; PIN:6; polarized Cable socket, straight 6P, 3-643814-6, TE Connectivity TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY POL RIB

¥1.1419
详情
3-644540-6

3-644540-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 Headers & Wire Housings FEED THRU W/TAB 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM TE Connectivity MTA-100 系列 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY F/T POL

¥1.1642
详情
3-640440-6

3-640440-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 6 way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 6WAY WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,6pos. Connector: wire-board; MTA-100; plug; female; PIN:6; tinned; 2.54mm Cable socket, straight 6P, 3-640440-6, TE Connectivity TE Connectivity MTA-156 系列 6路 2.54mm节距 直角 电缆安装 母 IDC 连接器 06P MTA100 CONN ASSY 22AWG RED

¥0.9490
详情
3-640621-6

3-640621-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 6P white tin 24 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY F/T NATL

¥1.2960
详情
644563-6

644563-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY F/T 24AWG

¥1.3248
详情
643813-6

643813-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6 POS 22AWG MTA 100 Headers & Wire Housings CLOSED WITH TABS 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP ConnectorAssembly;ClosedEnd;6;Nylon;CopperAlloy;Tin-Lead;0.100in. 06P MTA100 CONN ASSY POL RIB

¥1.1880
详情
3-641535-6

3-641535-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 6 POS RECPT 24 AWG CONN RECEPT 6POS 24AWG MTA100

¥1.1160
详情

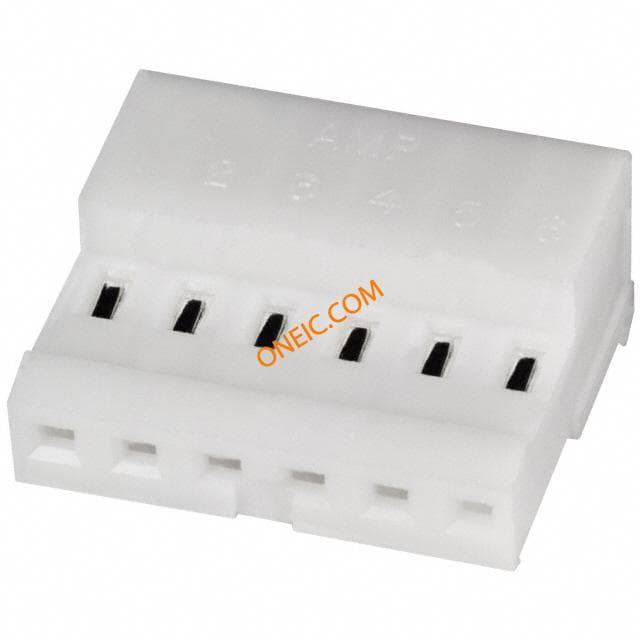

641535-6
