点击放大查看
3-644247-3
| 制造商 | |
| 描述 | Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount Tape Mounted on Reel MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 24AWG .100 WHITE |
| 分类 |
商业参数
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定交流电压 | 250 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tape & Reel (TR) | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 出线方向 | 90° |
| 导线线规 | 24 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 极化 | Polarizing Tab |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Closed End |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 安装特性 | Without | 包装数量 | Tape Mounted on Reel |
| 面板安装类型 | Without | 电缆端接方式 | IDC |
| 配接方向 | With | 触点数 | 3 |
| 位数 | 3 | 典型触点布局 | 2.54 [0.100] |
| 接触镀层厚度 | 80µin (2.03µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.12-0.15² [26] | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Closed End | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
文档与媒体
相关型号

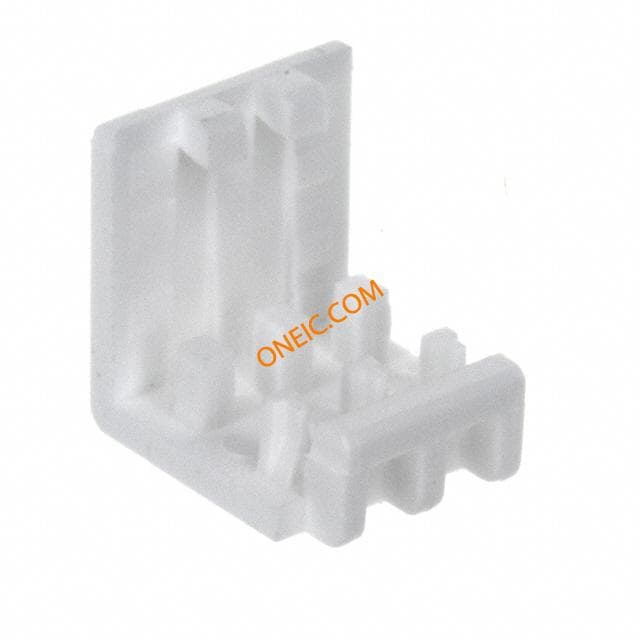

643075-3
te connectivity / amp
Connector Accessories 3 POS Strain Relief Closed End Covers Nylon White MTA, CST and SL Accessories CONN STRAIN RELIEF COVER 3POS 3w IDC closed end strain relief cover Headers & Wire Housings STRAIN RLF COVER 3P Closed End Connector Accessories 3 POS Strain Relief Closed End Covers Nylon White Product Highlights:Strain Relief CoversWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 3Used For MTA-100 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CLOSED END STRAIN RELIEF COVER, NYLON Cover,StrainRelief;MTA-100Connectors;Nylon;ClosedEnd;3;White;AMP Cabel hood and fastener; MTA-100; PIN:3; Mat: polyamide; UL94V-2 Cover with strain relief 3P, 643075-3, TE Connectivity TE Connectivity 应力释放支架 03P MTA100 MOLDED COVER
640550-3
te connectivity / amp
Connector Accessories 3 POS Closed End Dust Cover Polyester White MTA, CST and SL Accessories CONN DUST COVER 3POS CLOSED 3 way MTA socket cover Headers & Wire Housings DUST COVER 3P Closed End Connector Accessories 3 POS Closed End Dust Cover Polyester White Product Highlights:Dust CoverWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 3Used For MTA-100 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP DUST COVER, 3WAY Cover,Dust;MTA-100Connectors;Polyester;ClosedEnd;3;White;AMP;Cover Protection cover; MTA-100; PIN:3; Mat: polyester; UL94V-0 sale Cover 3P, 640550-3, TE Connectivity TE Connectivity MTA-100 白色 热塑性 灰尘 外罩, 使用于 MTA-100 系列 640550 03P MTA100 COVER
