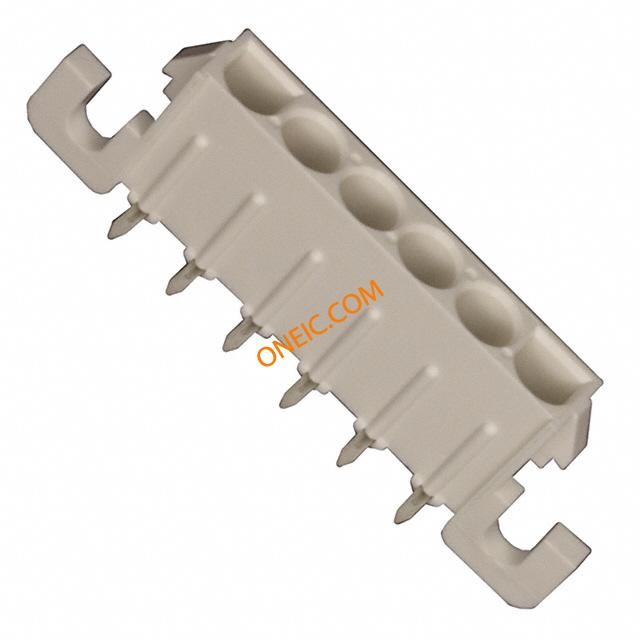

3-643234-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 6 POS 6.35mm Solder RA Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS RTANG .250 GOLD Pin & Socket Connectors 6P HDR ASSY R/A 94V0 Conn Power SKT 6 POS 6.35mm Solder RA Thru-Hole 6 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL HDR ASSY R/A 94VO LF |
| 分类 |
商业参数
| 其他名称 | A31773 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 140 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | 最大额定电流 | 19/Contact A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 17.27 mm |
| 间距 | 6.35 mm | 高度 | 9.14 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 端接方式 | Solder | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Header | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 6 | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 37.97 mm | 安装特性 | 安装孔 |
| 包装数量 | 140 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | 母端, 母端 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.18 mm [ .125 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Universal MATE-N-LOK, AMP | 产品子类型 | Header Assemblies |
| 端口数 | 1 Port | 输出配置 | Through Hole, Right Angle |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
文档与媒体
相关型号
640581-1
te connectivity / amp
