点击放大查看

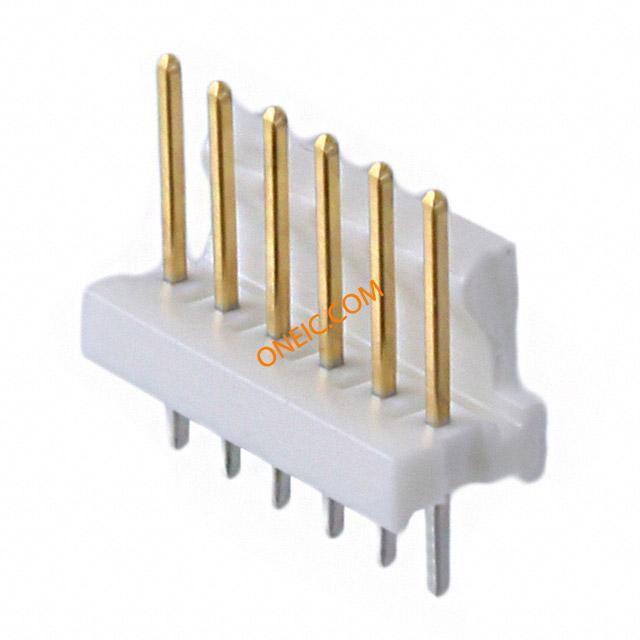

3-641126-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS STR .100 15GOLD Headers & Wire Housings HDR 06P VRT F-LOCK Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, HEADER, 6POS, 1ROW 06P MTA100 HDR ASY FL/STR LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 V |
| 开关功能 | Friction Lock | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 5.72 mm |
| 间距 | 2.54 mm | 高度 | 10.03 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 遮蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Male Pin | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | White |
| 安装类型 | Vertical | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器用途 | Header | 锁定特性 | Friction Lock |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 15.24 mm | 安装特性 | Without |
| 面板安装类型 | Without | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | Without | 触点数 | 6 |
| 接触件端接 | :Through Hole Vertical | 位数 | 6 |
| 后壳中断功能 | Without | 接触长度 - 配合 | 0.295" (7.49mm) |
| 触点材料 - 柱 | Copper Alloy | 端子柱长度 | 3.56 [0.140] |
| 接触镀层厚度 | 15µin (0.38µm) | 恢复后小径 | No |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-100 | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Printed Circuit Board |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55C to 105C | ||
