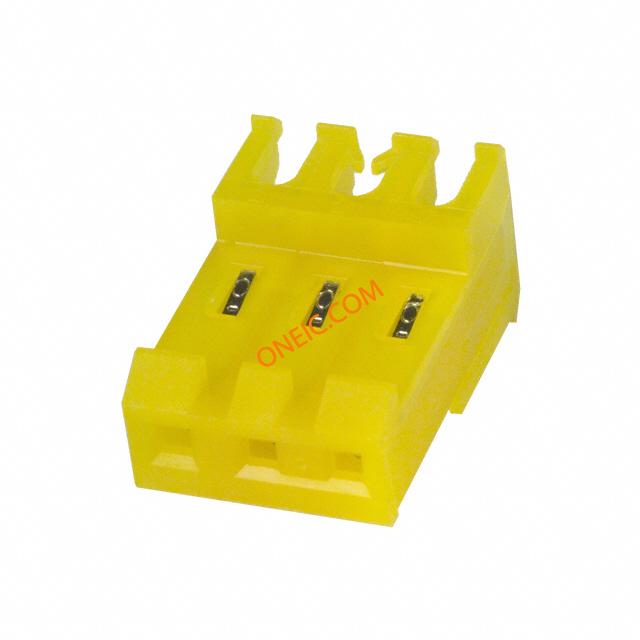

3-640600-3

点击放大查看

3-640600-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 20AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 3P L.R. yellow 20 AWG Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 CONN ASSY 20AWG LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600接触电阻3 mohm
连接器阻抗刺破式压接 (IDC)最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Yellow深度9.78 mm
间距3.96 mm高度18.42 mm
长度11.89 mm [ .468 in ]密封型Not Sealed
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色黄色电缆类型Discrete or Ribbon Cable
导线线规20 AWG端接方式IDT
触点形式Female Socket触头类型Female Socket
外壳颜色Yellow安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire引脚数3
排数1壳体镀层Nickel
外壳材料（壳体）标准外形插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度11.89 mm包装数量500
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数3绝缘直径2.41 mm [ .095 in ]
位数3外壳尺寸-插件母端, 母端
兼容外壳尺寸（如TM-700等）MTA .156 公端安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有
护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Feed Through
主要用途Feed Through产品子类型Connector Assemblies
安装类型Feed Through输出配置Free Hanging (In-Line)

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

在线文档
3-640600-3?RQPN=3-640600-3
