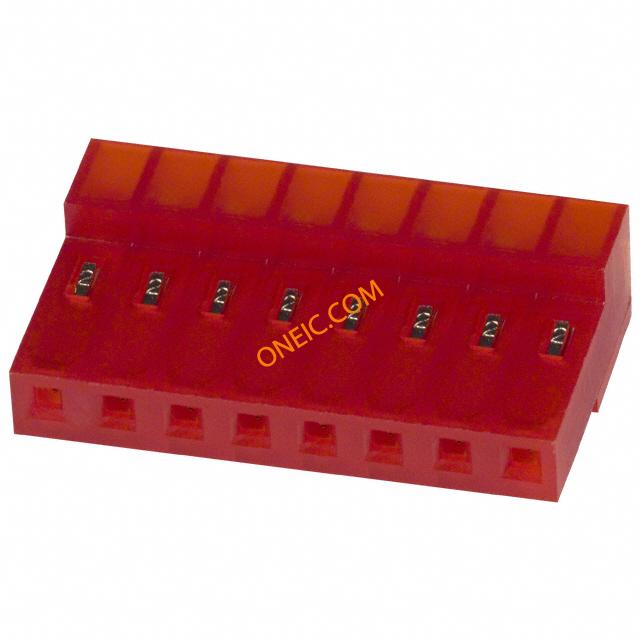

3-640433-8

点击放大查看

3-640433-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 22AWG MTA156 Headers & Wire Housings CLOSED W/O TABS 8P Red 22 AWG Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Ramp Lock
供电电压600接触电阻3 mohm
连接器阻抗刺破式压接 (IDC)最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Red深度9.02 mm
间距3.96 mm高度18.42 mm
长度31.7 mm [ 1.248 in ]密封型Not Sealed
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色红色电缆类型分离式导线
导线线规22 AWG端接方式IDT
触头类型Female Socket外壳颜色Red
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin Over Nickel触点时序Without
安装样式Wire引脚数8
排数1封装形式Receptacle
壳体镀层Nickel外壳材料（壳体）标准外形
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon总长度31.7 mm
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数8
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数8兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End
产品子类型Connector Assemblies安装类型Closed End
输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

3-640433-8?RQPN=3-640433-8
