点击放大查看

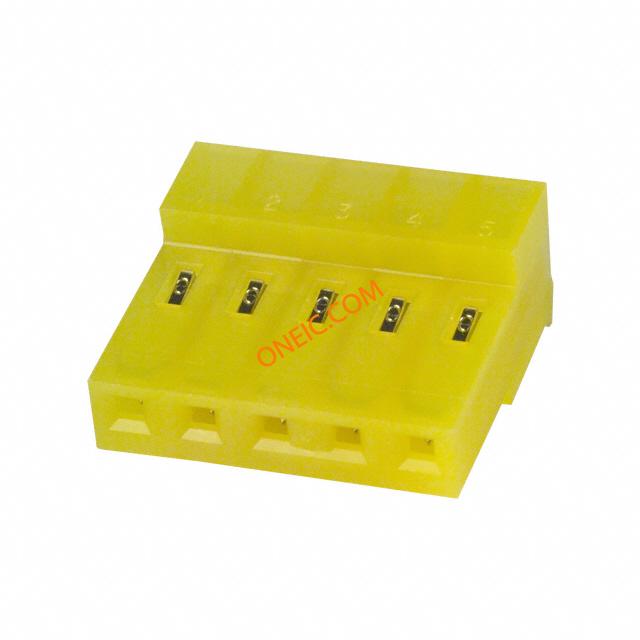

3-640432-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5POS 20AWG MTA156 Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, RCPT, 5POS, 1ROW 05P MTA156 CONN ASSY 20AWG YEL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - MTA-156 Series | ||
机械参数
| 颜色 | Yellow | 间距 | 3.96 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 20 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 排数 | 1 |
| 电缆端接方式 | IDC | 触点数 | 5 |
| 接触件端接 | :IDC / IDT | 位数 | 5 |
| 接触镀层厚度 | 80µin (2.03µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | :MTA-156 | 产品特性 | Closed End |
