点击放大查看

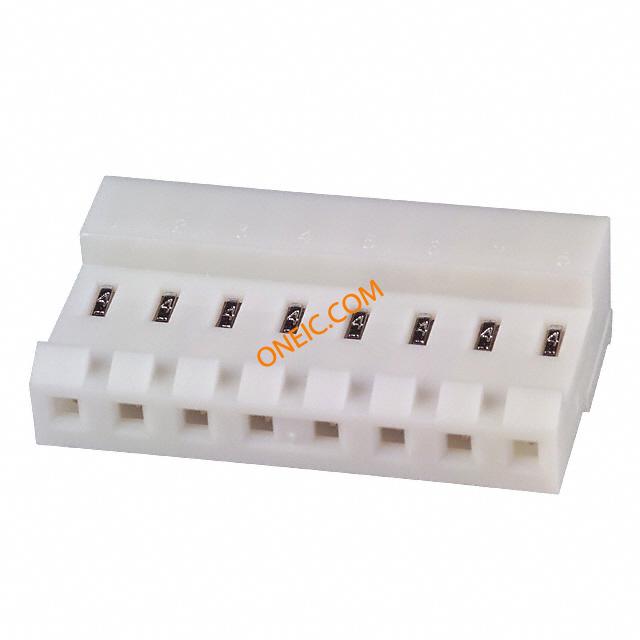

3-640429-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 24AWG MTA156 8 way cable mount MTA socket,24 awg Headers & Wire Housings CLOSED W/O TABS 8P L.R. natural 24 AWG Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 8WAY 8WCABLEMOUNTSKT24AWG 08P MTA156 CONN ASSY 24AWG WHT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - MTA-156 Series | 额定电压 | 600 V ac |
| 开关功能 | Locking Ramp | 最大额定电流 | 7A |
| 触点额定电流 | :5A | ||
机械参数
| 颜色 | White | 间距 | 3.96 mm |
| 重量 | 0.0375 | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 24 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :0.156" | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Natural | 触点数 | 8 |
| 接触件端接 | :IDC / IDT | 位数 | 8 |
| 接触镀层厚度 | 80µin (2.03µm) | 第一连接器安装类型 | :PC Board |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-156 | 产品特性 | Closed End |
| 产品子类型 | Connector Assemblies | ||
环境参数
| 工作温度 | +105°C | ||
