点击放大查看

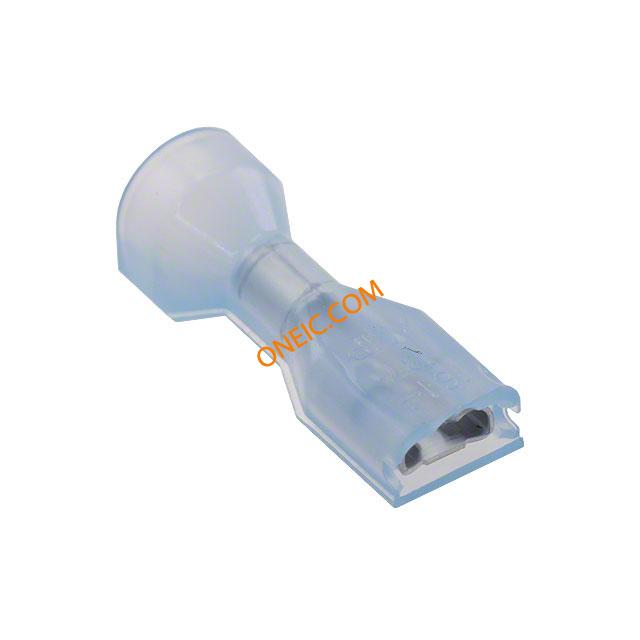

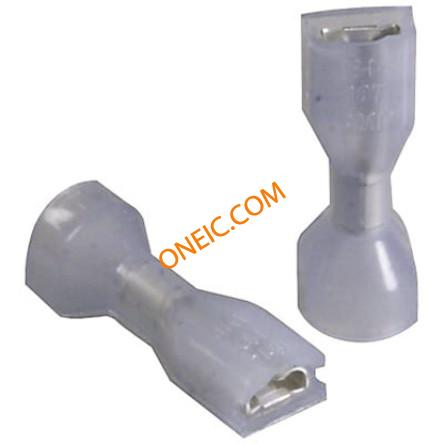

3-520151-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG RCP 23.74mm 8.53mm Tin Loose Piece Terminals 16-14 RECPTACLE Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 14-16 AWG .187 Receptacle, Ultra-Fast 187, AWG 16-14 Quick Disconnect Terminal 14-16AWG RCP 23.74mm 8.53mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 4.75 x 0.51 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, FEMALE DISCONNECT, 4.75MM BLUE AMP;RECEPTACLE;FULLYINSULATED;16-14AWG TE Connectivity Ultra Fast 187系列 蓝色 绝缘 压接插座 , 4.75 x 0.51mm, 镀锡触芯 ULTRAFAST 187 ASSY REC 16-14 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Blue | 深度 | 8.53 mm |
| 表面处理 | Tin | 重量 | 0.002 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 绝缘类型 | Insulated |
| 导线线规 | 16-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.187 in x 0.02 in | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.336" | 触头材料 | Brass |
| 绝缘颜色 | :Blue | 总长度 | 0.935" (23.75mm) |
| 包装数量 | Loose Piece | 主要材料 | QuickDisconnect |
| 绝缘高度 | Non-Insulation Support | 连接器颜色 | Blue |
| 绝缘直径 | 6.60 [.260] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :16AWG |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 187 | 应用 | Standard |
| 制造商全称 | ULTRA-FAST | 产品子类型 | Receptacle |
| 专有名称 | Ultra-Fast | ||
