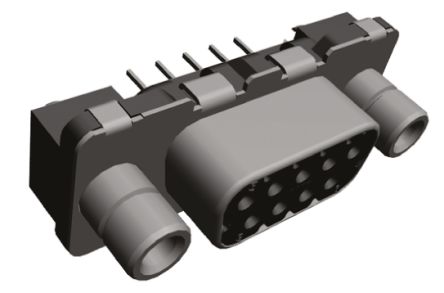

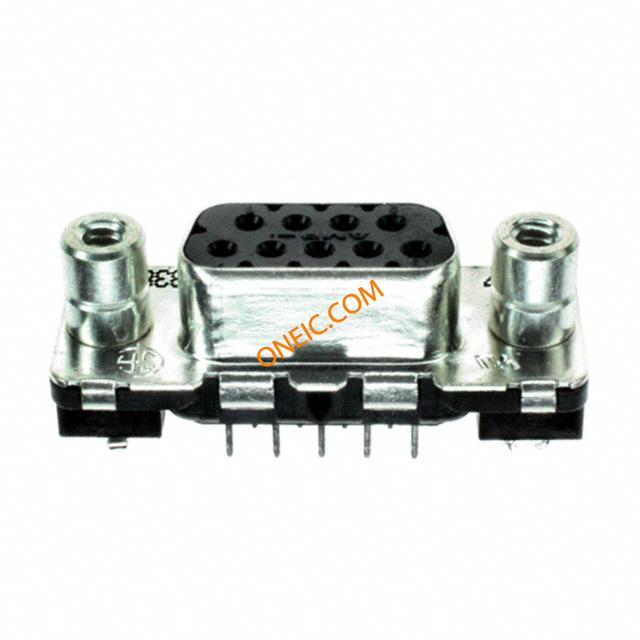

3-338313-2

点击放大查看

3-338313-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09S V/MNT Standard Board Mount Connectors CONN D-SUB RCPT VERT 9POS AMPLIMITE HD-20 d-sub PCB socket, 9 way Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HDP-20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub AMPLIMITEHD-20d-subPCBsocket,9way TE Connectivity Amplimite HD-20 系列 2.8mm 节距 9 路 直向 通孔安装 PCB D-sub 连接器 插座 9P.HDP20 REC. ASSY
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量55

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c标准编号DIN 41652
认可国家DIN 41652RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without连接器阻抗母端螺钉锁，4-40 UNC
最大额定电流6A

机械参数

颜色Black深度12.4mm
间距2.74 mm宽度12.1mm
高度12.1 mm长度30.9mm
密封型No外形尺寸(长x宽)1
锁定类型带有包装方式Tray
屏蔽否壳体颜色黑色
外壳尺寸1方向直
端接方式Solder触头类型Signal
外壳表面处理锡第二连接器With
安装类型Through Hole外壳镀层Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Mating Side; Female Screwlock (4-40)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.063 [1.60]
连接器样式D-Sub插入件材料磷青铜
锁定特性Female Screwlocks, 4-40 UNC触头材料Phosphor Bronze
壳体材料Polyester GF总长度30.9 mm
安装特性板锁包装数量55
面板安装类型Without尺寸/外形30.9 x 12.1 x 12.4mm
接地凹痕Without外形尺寸 长x宽x高5.99 [.236]
端接样式Solder连接器颜色None
触点数9位数9
外壳尺寸-插件Full Metal安装孔直径5
外壳材料及表面处理Steel, Tin Plated端子柱长度4.50 [0.177]
接触镀层厚度30µin (0.76µm)外壳与棱镜材料否
后壳材料及镀层锡外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Connector has boardlocks which have to be clinched onto the PCB for a perfect g类型D-Subminiature
连接器性别SKT系列HDP-20
产品特性Board Lock可密封否
性能第 2 级制造商全称AMP
预装是产品子类型连接器
端口数1 Port其他规格4-40 UNC 包容式螺钉锁，板锁

环境参数

工作范围Level 2工作温度-55°C ~ 105°C
封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
2-338313-2?RQPN=2-338313-2
PDF 文档
55259.pdf
