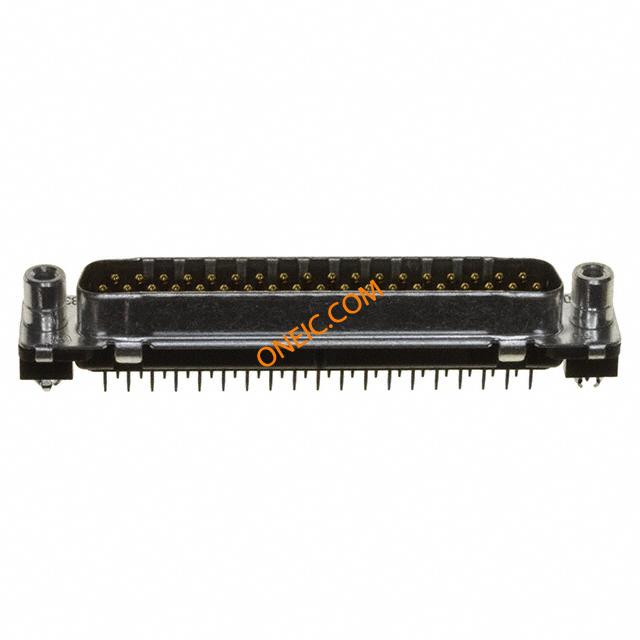

3-338312-2

制造商	TE Connectivity Ltd.
描述	Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors HDP20 PLUG ASSY Standard Board Mount Connectors CONN D-SUB PLUG 37POS VERT GOLD Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:37 PositionsHousing Gender = PlugPCB Mount Angle = VerticalProduct Series = HDP-20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
分类	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	D-Sub Standard Connectors	标准包装数量	Trays
工厂包装数量	25

合规参数

RoHS	RoHS Compliant	抗辐射加固	No
无铅定义	Wave solder capable to 240Â°C, Wave solder capable to 260Â°C, Wave solder c	认可国家	DIN 41652
RoHS/ELV合规状态	RoHS compliant, ELV compliant

电气参数

接地方式

Without

最大额定电流

机械参数

颜色	Black	深度	12.6 mm
间距	2.76 mm	高度	11.7 mm
密封型	No	镀层	Tin
材料（通用）	Phosphor Bronze	包装方式	Tray
外壳尺寸	4	端接方式	Solder
触头类型	Signal	第二连接器	With
安装类型	Through Hole	外壳镀层	Tin
连接器类型	Plug, Male Pins	接触镀层	Gold
法兰特征	Mating Side; Female Screwlock (4-40)	接地类型	Without
安装样式	Through Hole	排数	2
外壳材料（壳体）	Steel	电路板厚度	0.063 [1.60]
连接器样式	D-Sub	锁定特性	Female Screwlocks, 4-40 UNC
触头材料	Phosphor Bronze	壳体材料	Polyester GF
总长度	69.4 mm	面板安装类型	Without
接地凹痕	Without	端接样式	Solder
连接器颜色	None	触点数	37
位数	37	外壳尺寸-插件	Full Metal
外壳材料及表面处理	Steel, Tin Plated	端子柱长度	3.20 [0.126]
接触镀层厚度	30µin (0.76µm)	螺钉材料 - 镀层	Steel
外壳尺寸，连接器布局	4 (DC, C)

产品信息

备注	Connector has boardlocks which have to be clinched onto the PCB for a perfect g	类型	D-Subminiature
连接器性别	PIN	系列	HDP-20
产品特性	Board Lock, Grounding Indents	制造商全称	AMP
端口数	1 Port

环境参数

工作范围

Level 2

工作温度

-55°C ~ 105°C

文档与媒体

在线文档

3-338312-2?RQPN=3-338312-2

PDF 文档

1643129.pdf

相关型号

1658610-1

te connectivity / amp

Conn D-Subminiature SKT 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors 37P RECEPT HDF MS LF Standard Cable Connectors CONN D-SUB RECEPT 37POS 30 GOLD AMPLIMITE HDF-20 d-sub IDC socket,37 way Conn D-Subminiature SKT 37 POS 2.76mm IDT RA Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 37ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, DSUB, 37WAY Conn;D-Ribbon;CableSocket;37Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 37 路 IDC D-Sub 带状电缆连接器, 插座, 钢外壳 37 POS HDF RCPT, MS, LEAD FREE
