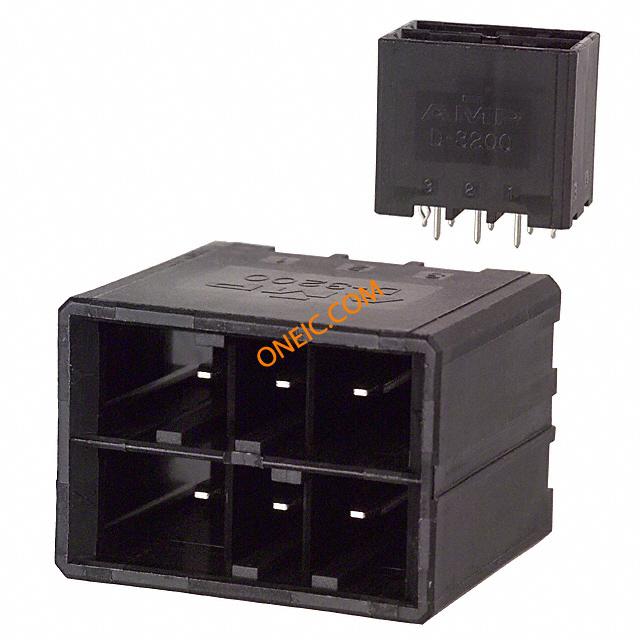

3-178140-5
| 制造商 | |
| 描述 | Conn Power HDR 6 POS 5.08mm Solder ST Thru-Hole 6 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 6POS VERT KEY-XY TIN D-3000 6 Male Straight Heavy Duty Power Connector, Through Hole,600V ac Headers & Wire Housings 6 POS HDR VERT TIN KEY XY Conn Power HDR 6 POS 5.08mm Solder ST Thru-Hole 6 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 6Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headervert6wayTAB5.08mmXYkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 6路 直 PCB 针座, 焊接端接 , 通孔 DYNAMIC D3200 HDR V ASSY 6P |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | A29410 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V ac | 额定交流电压 | 600 |
| 最大额定电流 | 10/Contact A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 16.97 mm |
| 间距 | 5.08 mm | 高度 | 21.6 mm |
| 包装方式 | Bulk | 排间距 | 0.300" (7.62mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 5.08 x 7.62 [.200 x .300] | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 安装样式 | Thru Hole |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 24.16 mm |
| 包装数量 | Tube | 主要材料 | Power |
| 触点数 | 6 | 端接表面处理 | Tin |
| 位数 | 6 | 接触镀层厚度 | 78.7µin (2.00µm) |
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | HDR | 系列 | D-3200M (Drawer Type), D-3200M (Modular Type) |
| 产品特性 | Board Lock, Polarizing Key | 钥匙类型 | XY |
| 编码、键控 | Yes | 制造商全称 | D-3000Series |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
