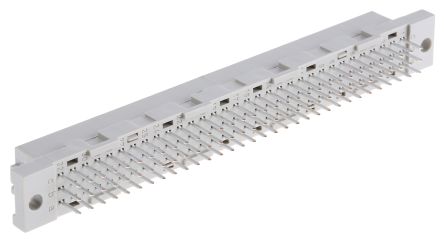

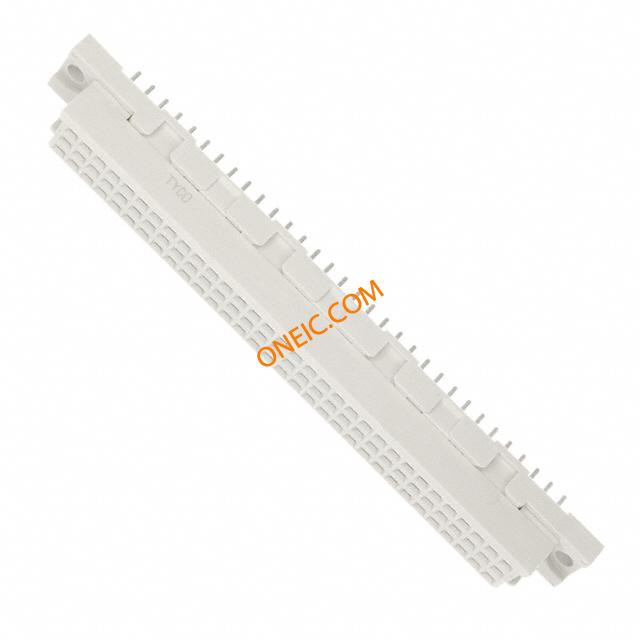

3-1393641-1

点击放大查看

3-1393641-1

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RCPT 96POS VERT SOLDER PCB 2.54mm,rcpt,DIN41612,solder,vert,PCB,96w DIN 41612 Connectors PIN ADJUSTMENT Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacle96 PositionsRows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Multipole socket C 96-p DIN 41612 2 3 x 32 a + b + c, 3-1393641-1, TE Connectivity TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 V42254B2202C960=PC612 FEDERLEI
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612测试电压1
额定电压250 V ac极数3 x 32
接触电阻15mΩ最大额定电流1.5 A
绝缘电阻≥10 GOhm最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度10.6 mm间距2.54 mm
高度11.55 mm涂层Without
包装方式Bulk屏蔽否
方向Straight端接方式Solder
触点尺寸0.32 x 0.76 [.013 x .030]触头类型Solder Post
外壳颜色Gray安装类型Through Hole
端子尺寸.32 x .76 mm [ .013 x .03 in ]连接器类型Receptacle, Female Sockets
接触镀层Gold or Gold-Palladium触点时序否
安装样式Through Hole排数3
高度（英寸）10.6插入件材料磷青铜
触头材料Copper Alloy壳体材料Thermoplastic Glass Reinforced
总长度95 mm安装特性With
面板安装类型通孔 - 焊接尺寸/外形II
端接排数焊接先合后断No
连接器间距2.54端接样式Solder
触点数96位数96
触头长度-柱信号（数据）绝缘材料 - 材质Polybutylene Terephthalate (PBT), Polyester, Glass Filled
安装孔直径带有端子柱长度4.50 [0.177]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列Eurocard导向方式Without
制造商全称V42254B2202C960产品子类型Type C Connectors
总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VME 64, VXIBus连接类型Printed Circuit Board
连接方式Soldering-in, 4,5 mm工具类型/特性No
插座类型与数量A/b/c加载位置数All

环境参数

额定等级2温度No
级别、等级2工作温度-55°C ~ 125°C
可用温度范围-55to+125°C封装热阻2.39 mm [ .094 in ]
结工作温度125°C

文档与媒体

在线文档
3-1393641-1?RQPN=3-1393641-1
