点击放大查看

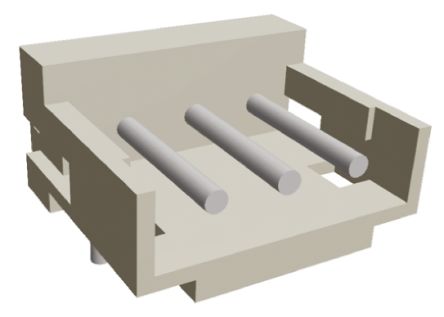

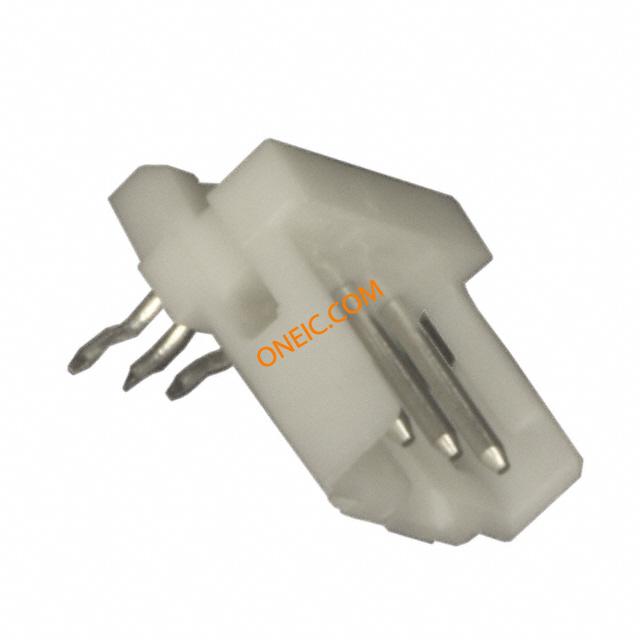

292253-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 3 POS 2mm Solder RA Thru-Hole 2mm AMP CT CONN HEADER 3POS R/A 2MM T/H TIN TE Connectivity 292253 Series 2mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 3P R/A HDR ASSY Conn Shrouded Header HDR 3 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, PostHeaderAssembly,3Position,Horizontal,2mmPitch,DIPStandardType Pin header 90° Pitch2 mm Poles 3 CT, 292253-3, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 2A , 通孔 CT CONN MT HDR ASSY H 3P NAT |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | CSA, UL |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL档案号 | E28476 |
| 认证机构 | CSA,UL | CSA档案号 | LR 7189 |
| 标准编号 | UL 94V-0, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 125 V ac/dc | 极数 | 3 |
| 开关功能 | No | 供电电压 | 125 |
| 最大额定电流 | 2A | 连接器类型 - 电压输入 | 圆柱体 |
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 形状 | 矩形 | 宽度 | 4 mm [ .157 in ] |
| 高度 | 8.8 mm [ .346 in ] | 长度 | 7.8 mm [ .307 in ] |
| 包装方式 | Bulk | 尾部类型 | Inline |
| 壳体颜色 | 自然 | 电缆类型 | 分离式导线 |
| 导线线规 | 28 – 22 | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 4.5mm | 触点形状 | Round |
| 外壳颜色 | Natural | 安装类型 | Right Angle |
| 行程角度 | Right | 连接器类型 | MT (Mass Termination) |
| 接触镀层 | Tin | 触点时序 | Without |
| 安装样式 | Thru Hole | 排数 | 1 |
| 壳体镀层 | Tin | 连接器用途 | Header |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 7.8mm |
| 安装特性 | 扭结支脚 | 包装数量 | 500 |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 端接排数 | 焊接 | 插针孔直径 | 0.079" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 排针方向 | Standard | 触点数 | 3 |
| 端接表面处理 | 不带 | 位数 | 3 |
| 第一连接器极性 | Male | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 0.85mm | 中心触点材料 | 2.00 [0.079] |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.177" (4.50mm) |
| 表面贴装焊盘尺寸 | Internal | 端子柱长度 | 4.5 mm [ .177 in ] |
| 接触镀层厚度 | 1 µm [ 39.37 µin ] | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 292253 | 覆盖范围 | 覆盖 |
| 产品特性 | Breakaway | 可密封 | 否 |
| 卷轴尺寸 | 500 | 制造商全称 | MTSeries |
| 产品子类型 | Connector | 连接类型 | Printed Circuit Board |
| 连接方式 | Wire-Board | 加载位置数 | All |
环境参数
| 工作温度 | -30to+105°C | 封装热阻 | .8 mm [ .031 – .063 in ] |
