点击放大查看

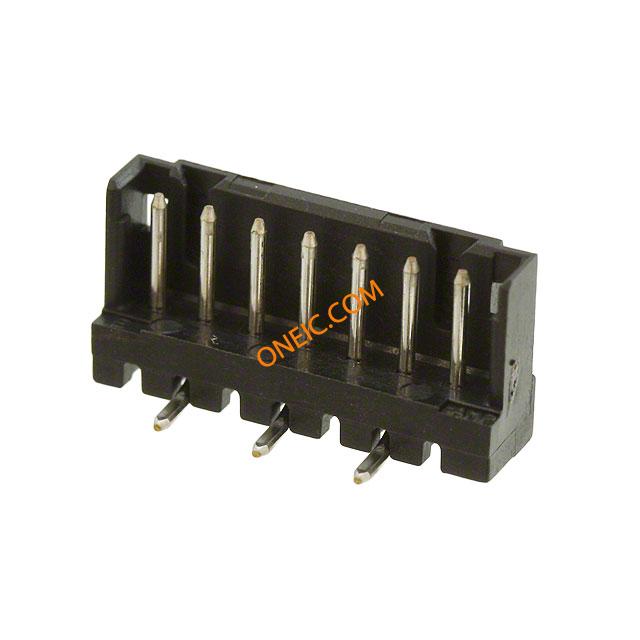

292172-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 7 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 7POS SMD VERT TIN Headers & Wire Housings CT POST HDR ASSY 7P IN-TUBE BL CT POST HDR ASSY 7P IN-TUBE BL CT POST HDR ASSY 7P IN-TUBE BL Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, |
| 分类 |
商业参数
| 商标名 | Common Termination | 标准包装规格 | 30 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | CSA, UL |
| 无铅定义 | Reflow solder capable to 245°C | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL 94V-0 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | No | 供电电压 | 125 |
| 最大额定电流 | 4 | 连接器类型 - 电压输入 | 圆柱体 |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 形状 | 矩形 | 宽度 | 4 mm [ .157 in ] |
| 高度 | 7.8 mm [ .307 in ] | 长度 | 16 mm [ .6299 in ] |
| 包装方式 | Tube | 尾部类型 | 交错 |
| 壳体颜色 | 黑色 | 电缆类型 | 分离式导线 |
| 导线线规 | 28 – 22 | 端接方式 | Solder |
| 触头类型 | Male Pin | 触点形状 | Round |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | MT (Mass Termination) | 接触镀层 | Pre-Tin |
| 触点时序 | With | 安装样式 | Surface Mount |
| 排数 | 1 | 连接器用途 | Header |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Polyphenylene Sulfide (PPS) | 总长度 | 2.00 [0.079] |
| 包装数量 | Tube | 面板安装类型 | Without |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male) |
| 排针方向 | Standard | 触点数 | 7 |
| 端接表面处理 | 带有 | 位数 | 7 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 同轴 |
| 接触长度 - 配合 | 0.177" (4.50mm) | 表面贴装焊盘尺寸 | Internal |
| 端子柱长度 | 4.5 mm [ .177 in ] | 接触镀层厚度 | 1 – 2 µm [ 39.37 – 78.73 µin ] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP CT | 可密封 | 否 |
| 卷轴尺寸 | 30 | 产品子类型 | Connector |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
环境参数
| 工作温度 | -40 – 221 °C [ -40 – 105 °F ] | 封装热阻 | .8 mm [ .031 – .063 in ] |
