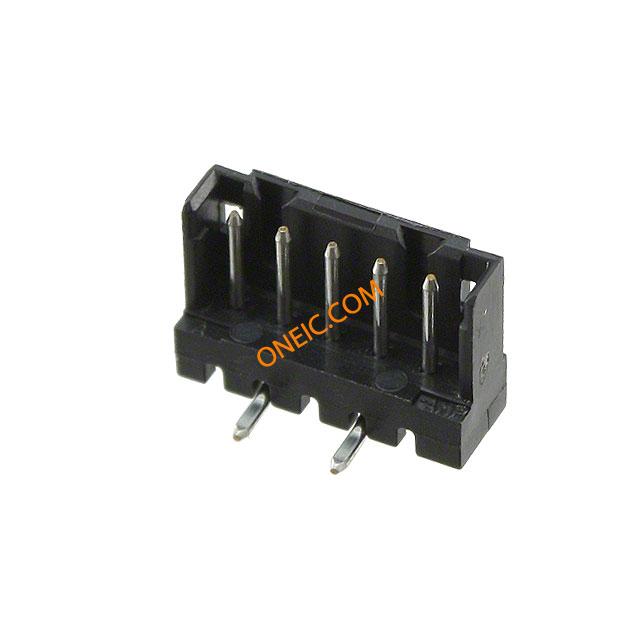

292172-5

点击放大查看

292172-5

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 5 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 5POS SMD VERT TIN Headers & Wire Housings CT POST HDR ASSY 5P IN-TUBE BL Conn Shrouded Header HDR 5 POS 2mm Solder ST SMD Tube Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 5Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT POST HDR ASSY 5P IN-TUBE BL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名Common Termination产品类别Headers & Wire Housings
标准包装数量Rail / Tube

合规参数

RoHSLead free / RoHS Compliant零件状态CSA, UL
无铅定义Reflow solder capable to 245°CUL档案号E28476
CSA档案号LR 7189标准编号UL 94V-0, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

开关功能No供电电压125
最大额定电流4连接器类型 - 电压输入圆柱体

机械参数

颜色Black间距2 mm
形状矩形宽度4 mm [ .157 in ]
高度7.8 mm [ .307 in ]长度12 mm [ .472 in ]
包装方式Tube尾部类型交错
壳体颜色黑色电缆类型分离式导线
导线线规28 – 22端接方式Solder
触头类型Male Pin触点形状Round
外壳颜色Black安装类型Vertical
连接器类型MT (Mass Termination)接触镀层Pre-Tin
触点时序With安装样式Surface Mount
排数1连接器用途Header
插入件材料黄铜触头材料Brass
壳体材料Polyphenylene Sulfide (PPS)总长度2.00 [0.079]
包装数量Tube面板安装类型Without
端接样式插针第一触头极性Pin (Male)
排针方向Standard触点数5
端接表面处理带有位数5
触头长度-柱信号（数据）安装孔直径带有
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.177" (4.50mm)表面贴装焊盘尺寸Internal
端子柱长度4.5 mm [ .177 in ]接触镀层厚度1 – 2 µm [ 39.37 – 78.73 µin ]
静电放电屏蔽不带

产品信息

类型Shrouded Header连接器性别HDR
系列AMP CT可密封否
卷轴尺寸2000产品子类型Connector
连接类型Printed Circuit Board加载位置数All

环境参数

工作温度-40 – 221 °C [ -40 – 105 °F ]封装热阻.8 mm [ .031 – .063 in ]

文档与媒体

在线文档
292172-5?RQPN=292172-5
