292172-3

点击放大查看

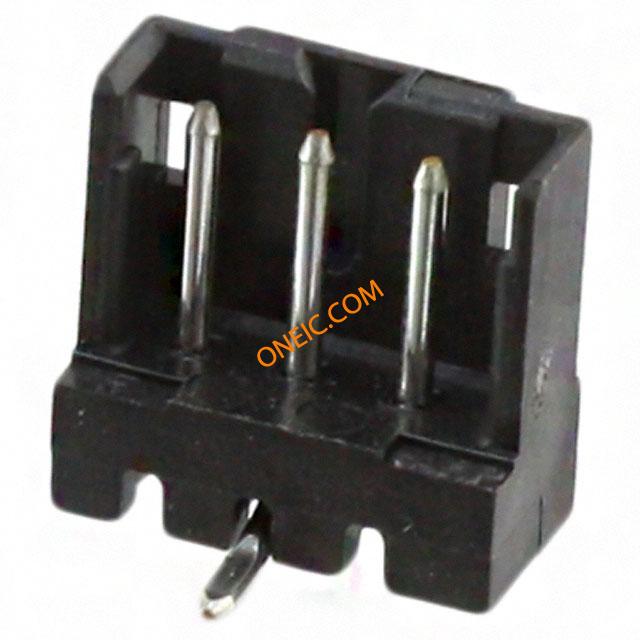

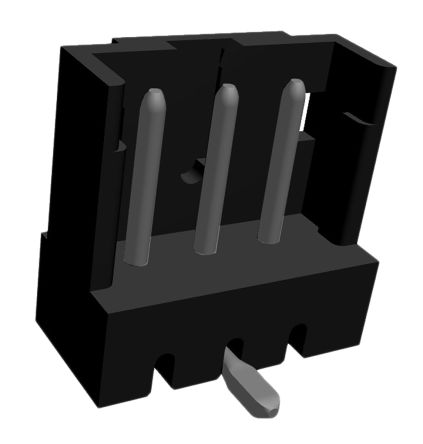

292172-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 3 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 3POS SMD VERT TIN Headers & Wire Housings CT POST HDR ASSY 3P IN-TUBE BL Conn Shrouded Header HDR 3 POS 2mm Solder ST SMD Tube Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, TE Connectivity AMP CT 系列 2mm节距 3路 (1排) 垂直 PCB 针座, 焊接端接, 4A , 表面安装 CT POST HDR ASSY 3P IN-TUBE BL
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名Common Termination产品类别Headers & Wire Housings
标准包装数量Rail / Tube

合规参数

RoHSContains lead / RoHS Compliant零件状态CSA, UL
无铅定义Reflow solder capable to 245°CUL档案号E28476
CSA档案号LR 7189标准编号UL 94V-0, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压125 V 交流/直流开关功能No
供电电压125最大额定电流4A
最小供电电压125VDC/125VAC连接器类型 - 电压输入圆柱体

机械参数

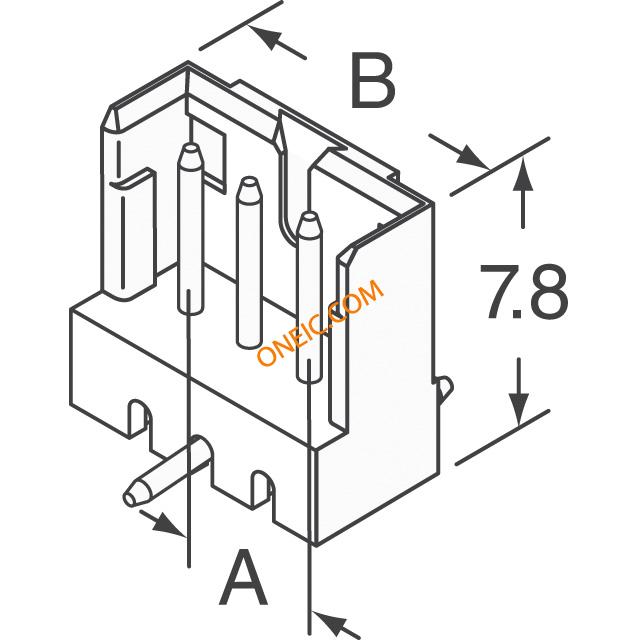

颜色Black深度7.8 mm
间距2 mm形状矩形
宽度4 mm [ .157 in ]高度6 mm
长度8 mm [ .314 in ]包装方式Tube
尾部类型交错壳体颜色黑色
电缆类型分离式导线导线线规28 – 22
方向垂直端接方式Solder
触头类型Male Pin触点形状Round
外壳颜色Black安装类型Vertical
连接器类型MT (Mass Termination)接触镀层Pre-Tin
触点时序With安装样式Surface Mount
排数1连接器用途Header
插入件材料黄铜触头材料Brass
壳体材料Polyphenylene Sulfide (PPS)总长度2.00 [0.079]
包装数量Tube面板安装类型Without
端接排数焊接端接样式插针
第一触头极性Pin (Male)排针方向Standard
触点数3端接表面处理带有
位数3触头长度-柱信号（数据）
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.177" (4.50mm)
表面贴装焊盘尺寸Internal端子柱长度4.5 mm [ .177 in ]
接触镀层厚度1 – 2 µm [ 39.37 – 78.73 µin ]静电放电屏蔽不带

产品信息

类型Shrouded Header连接器性别HDR
系列AMP CT覆盖范围覆盖
可密封否卷轴尺寸60
产品子类型Connector连接类型Printed Circuit Board
加载位置数All

环境参数

工作温度-40 – 221 °C [ -40 – 105 °F ]封装热阻.8 mm [ .031 – .063 in ]

文档与媒体

在线文档
292172-3?RQPN=292172-3
