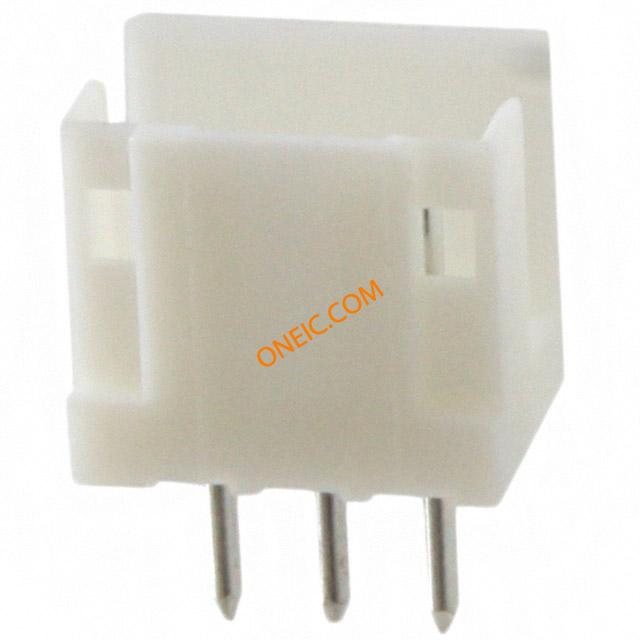

292133-3

点击放大查看

292133-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 3POS VERT 2MM TE Connectivity 292133 Series 2mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination 292133-3 Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,box,PCB,2mm,3way,vert.,CT TE Connectivity AMP CT 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接 , 通孔 CT P/HDR ASSY BOX V 3P W/O KIN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
标准编号UL 94V-0RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

开关功能No供电电压125
最大额定电流4连接器类型 - 电压输入圆柱体

机械参数

颜色Natural间距2 mm
形状矩形宽度5.8 mm [ .228 in ]
高度6.8 mm [ .267 in ]长度7.8 mm [ .307 in ]
包装方式Bulk尾部类型Inline
壳体颜色自然电缆类型分离式导线
导线线规28 – 22方向直
端接方式Solder触头类型Male Pin
触点形状Rounded外壳颜色Natural
安装类型Vertical连接器类型Crimp, MT (Mass Termination)
接触镀层Pre-tinned触点时序Without
安装样式Thru Hole排数1
壳体镀层Tin连接器用途Header
插入件材料黄铜触头材料Brass
壳体材料Nylon总长度2.00 [0.079]
包装数量1000面板安装类型Without
端接排数焊接端接样式插针
排针方向Box触点数3
端接表面处理不带位数3
触头长度-柱信号（数据）安装孔直径带有
接触件表面处理 - 配合锡接触长度 - 配合0.165" (4.19mm)
表面贴装焊盘尺寸Internal端子柱长度4.2 mm [ .165 in ]
接触镀层厚度1 µm [ 39.37 µin ]静电放电屏蔽不带

产品信息

类型Shrouded Header连接器性别HDR
系列292133覆盖范围覆盖
可密封否卷轴尺寸1000
产品子类型Connector连接类型Printed Circuit Board
加载位置数All

环境参数

工作温度-22 – 221 °C [ -30 – 105 °F ]封装热阻.8 mm [ .031 – .063 in ]
